SKU
HI98301

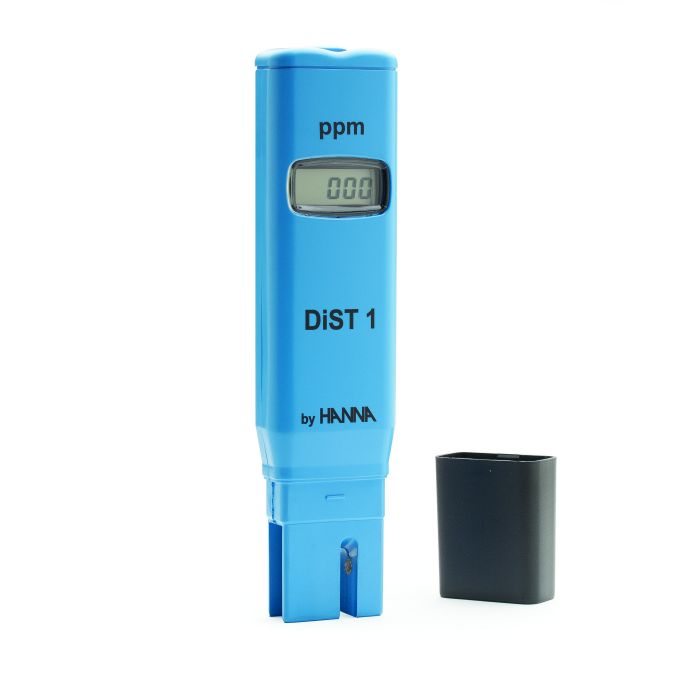

TDS Tester (ppm) DiST®1 - HI98301

€67.00
Out of stock

The Hanna Instruments HI98301 DiST® 1 is a low-range total dissolved solids tester than can measure up to 2000 ppm (mg/L). The DiST® 1 is a rugged and reliable pocket-sized tester for use in the lab or field. This modern looking meter is only 0.7" thick and extremely ergonomic, fitting comfortably in your hand. The HI98301 DiST® 1 has a 0.5 conversion factor in the measurement of TDS in a variety of applications including water conditioning, environmental monitoring, education and general laboratory use. This tester keeps things simple with a two-button operation; one for ON/OFF, the other for calibration.

  • Large Multi-level LCD
  • Exposed Temperature Probe for Fast Response
  • Simple Two-Button Operation

The DiST® 1 features a large multi-level LCD which displays both TDS and temperature readings simultaneously. The TDS readings are displayed with a 1 ppm resolution and with an accuracy of ±2% full scale. The TDS range of the HI98301 is from 0 to 2000 ppm. An exposed temperature sensor allows for rapid automatic temperature compensated TDS measurements. Temperature can be set to display in ℃ or ℉. The LCD screen has stability and calibration tag indicators. The battery percent level is displayed at start up alerting the user to the remaining battery power that is available.

TDS readings are performed by an amperometric graphite electrode that resists oxidation, providing better repeatability in measurements. The use of graphite also reduces the polarization effect common with amperometric testers that use two stainless steel pins.

Calibration is performed by pressing the dedicated calibration button. Once in calibration mode submerge the probe in 1382 ppm calibration standard. When the standard value is recognized and stability reached, the meter will automatically accept and store the calibration value.

Setup options include automatic shut-off timing and temperature unit displayed. Automatic shut-off options are to turn the meter off after 8 minutes, 60 minutes, or disabled. To enter the setup mode the user presses a button located in the battery compartment.

Multi-Level LCD

The large LCD displays TDS, temperature, calibration tag, battery level and instability indicator.

Exposed Temperature Probe

An exposed temperature probe allows for an extremely fast and stable TDS measurement.

Two-Button Operation

Only two buttons for meter operation. One for on/off and one for calibration.





Specifications

SKU HI98301
TDS Range 0 to 2000 mg/L (ppm)
TDS Resolution 1 mg/L (ppm)
TDS Accuracy ±2% F.S.
TDS Calibration automatic, one-point at 1382 ppm
EC/TDS Temperature Compensation automatic from 0 to 50°C (32 to 122°F)
EC to TDS Conversion Factor 0.5
Temperature Range 0.0 to 50.0°C/32.0 to 122.0°F
Temperature Resolution 0.1°C / 0.1°F
Temperature Accuracy ±0.5°C / ±1.0°F
Battery Type / Life CR2032 3V Li-ion / approx. 250 hours of continuous use
Environment 0 to 50°C (32 to 122°F); RH 100% max
Dimensions 160 x 40 x 17 mm (6.3 x 1.6 x 0.7’’)
Weight 75 g (2.6 oz.)
Ordering Information HI98301 (DiST 1) is supplied with CR2032 battery, 1382 ppm calibration solution sachet (4), storage/protection sleeve, instruction manual and quality certificate.
