SKU
HI101

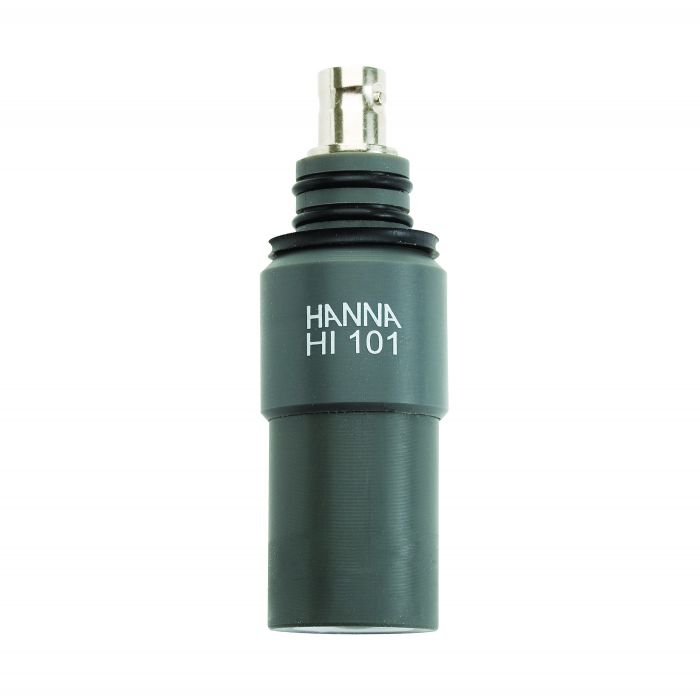

Submersible pH Electrode with PVC body and BNC Connector - HI101

€226.00
In stock
This submersible pH electrode is designed for industrial applications with features such as a PTFE junction and general purpose glass. With it's durable design, you can count on this electrode to stand up to your process environment.
  • Submersible pH electrode with exclusive PTFE non-clogging membrane.
  • General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
  • Built for everyday, demanding use in industrial applications.

Submersion pH electrode

Suitable for direct immersion in vats and tanks.

PTFE junction

The electrode has a unique clog resistant junction that enhances both probe life and accuracy.

General purpose glass formulation

General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.

BNC connector

Allows for quick and easy connection to any pH/ORP meter or transmitter.

Double junction technology with gel polymer filling

Ensure long electrode life and reliability in harsh environments.

Flat tip

Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.

Specifications

pH



Junction / Flow Rate

Double, Ag/AgCl, PTFE

Measurements Range

0-13 pH

Reference Cell type

Double, Ag/AgCl

Type of electrolyte

Polymer

Body Material

PVC

Max. pressure

6 bar (87 psi)

Tip shape

Flat

Body length / Overall length

120mm / 175.5 mm

Temperature sensor

no

Matching pin

No

Maplifier

No

Connection

BNC
