SKU
HI3002

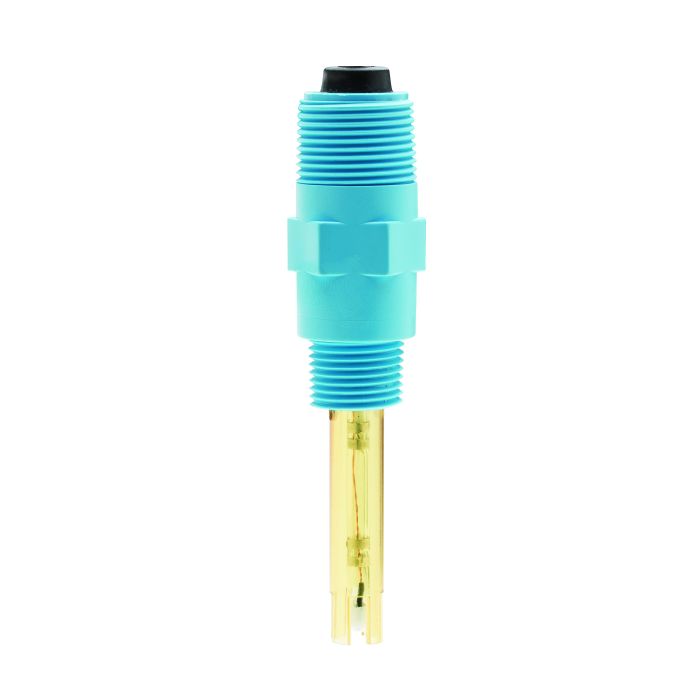

Submersible Conductivity Probe - NTC Sensor, 3m Cable - HI3002 S

€189.52
In stock
This four-ring submersible conductivity probe measures in industrial applications with a platinum sensor and NTC sensor for Automatic Temperature Compensation. With it's durable design, you can count on this electrode to stand up to your process environment.
  • Four-ring probes measure conductivity with platinum sensors.
  • Houses an NTC sensor for Automatic Temperature Compensation.
  • Built for everyday, demanding use in industrial applications.

Submersion conductivity probe

Suitable for direct immersion in vats and tanks.

Four-ring method

Provides an exceptionally stable measurement over a wider range. These probes do not suffer polarization, nor do they need frequent calibration or cell changes.

PVDF body

PVDF offers characterized by high thermal stability and excellent chemical resistance.

NTC sensor

Provide accurate and effective temperature compensation. D

IN connector

Standard ½” external thread on the front for flow-thru mounting and ¾” threads on the back for submersion or pipe mounting.

PEI protective cover

Can be removed for quick maintenance.



Specifications



Body Material

PEI, PVDF

Glass Type

(0 to 80°C/ 32 to 176°F)

Temperature Compensation Range

Automatic, 0 to 60°C

Max. pressure

6 bar (87 psi)

Overall Length

129mm

Temperature sensor

yes

Temperature sensor type

NIST thermistor

Matching Pin

No

Amplifier

No

Cable

3m
