The Hanna Silica Checker® bridges the gap between simple chemical test kits and professional instrumentation. Chemical test kits have limited accuracy and resolution since they rely upon the human eye to discern differences in color. Professional instrumentation incorporates a light source such as an LED or tungsten lamp with a filter and a light sensing detector to precisely determine absorbance and ion concentration. Professional instrumentation offers greater resolution and accuracy but can cost hundreds of dollars. The Hanna Silica Checker® uses a fixed wavelength LED and silicon photo detector to provide the accuracy of professional instrumentation at the affordable price of a chemical test kit.

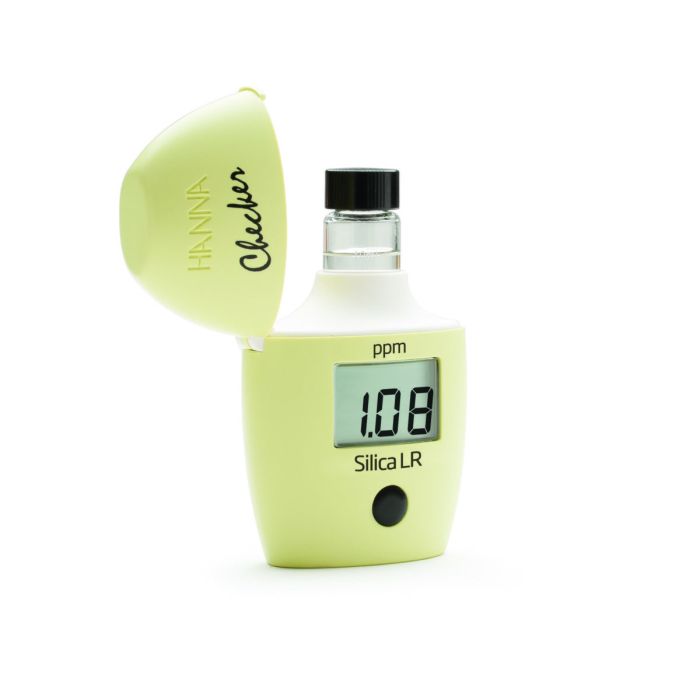

The HI705 Checker® HC (Handheld Colorimeter) provides a simple, accurate and cost effective way to measure silica. Silica is found in all natural waters in the dissolved form. Due to the potential to cause scaling, it is undesirable and therefore monitored in industrial applications, and in heating and reverse osmosis systems. Designed as a more accurate alternative to chemical test kits, the HI705 provides quick, accurate results in four easy steps.
* To zero 6 drops of reagent A and one packet of reagent B are added to the sample to be tested.
Specifications
Silica Range
0.00 to 2.00 ppm
Resolution
0,01 ppm
Accuracy
±0.03 ppm ±5% of reading
Method
adaptation of the ASTM D859, heteropoly blue method
Battery Type
1.5V AAA / 10,000 hours of continuous use
Environment
0 to 50°C (32 to 122°F); RH max 95% non-condensing
Auto-off
after ten minutes of non-use
Photometer/Colorimeter Light Source
LED @ 610 nm
Photometer/Colorimeter Light Detector
silicon photocell
Dimensions
86.0 x 61.0 x 37.5 mm (3.4 x 2.4 x 1.5”)
Weight
64 g (2.3 oz)
Ordering information
HI705 Checker® is supplied with (2) cuvettes with caps, silica LR reagent starter kit for 12 tests (1 bottle of reagent A, 12 packets of reagent B, and 12 packets of reagent C), battery, and instructions.
