Professional pH/mV Meter with Built-in Printer - HI122-02

Name: Professional pH/mV Meter with Built-in Printer - HI122-02
SKU: HI122-02
Price: 1187.00 EUR

€1,187.00

In stock

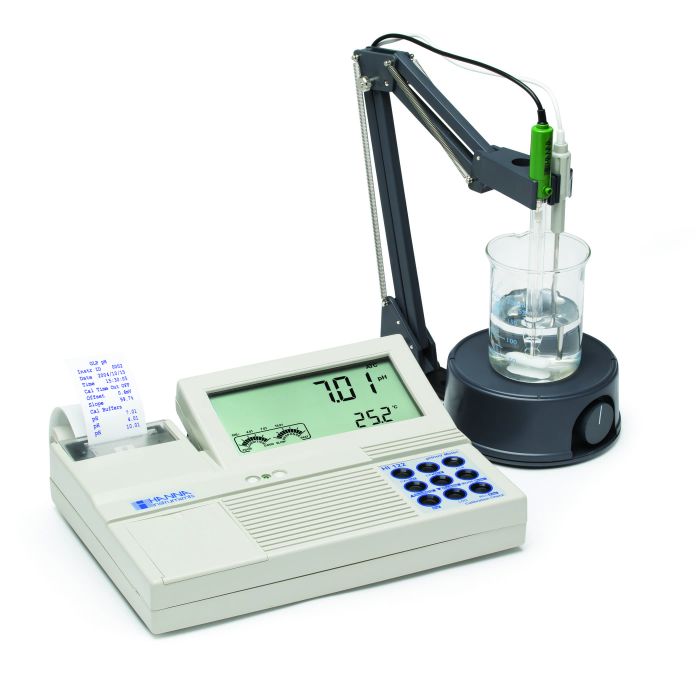

The HI122 is a professional pH/mV and temperature benchtop meter with a built-in printer. The built-in impact printer incorporated into the HI122 allows measurement information to be printed while in various modes. The meter comes with Hanna's HI1131P glass pH electrode and the temperature probe HI7662-T to allow for automatic temperature compensation. The HI122 also allows for ORP measurements when used with the HI3131B ORP electrode (supplied seperately). The HI122 offers many features including CAL Check™, five-point pH calibration, data logging, comprehensive GLP data, and PC connectivity to provide users with a simple way to organize and manage their data.

Automatic Temperature Compensation
CAL Check™
Data Logging

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The HI122 pH/mV and temperature benchtop meter feature CAL Check^™, a clear and informative LCD display, data logging capability, and computer connectivity. The pH Meter with Built-in Printer HI122 has a single input channel that allows for the measurement of pH and ORP. Readings for pH can be manually or automatically compensated for temperature variations with the separate HI7662-T temperature probe from -20.0 to 120.0°C. This pH Meter with Built-in Printer can be calibrated up to five points with a choice of seven standard buffers or two custom buffers. All GLP data regarding pH and relative mV calibration is stored for the user to review when necessary. The built-in impact printer incorporated into the HI122 allows for on demand printing of a complete set of information based on the measured, set or recorded data while in various modes such as, measurement mode, GLP or Setup mode.

Features at-a-glance

CAL Check™

Hanna's exclusive CAL Check™ diagnostics system ensures accurate pH readings every time by alerting users of potential problems during the calibration process. The CAL Check™ system eliminates erroneous readings due to dirty or faulty pH electrodes or contaminated pH buffer solutions during calibration. After the guided calibration process, the probe condition is evaluated and an indicator is displayed informing the user of the overall pH electrode status.

Automatic Calibration

pH calibration can be performed up to five points with seven standard buffers and two custom buffers.

Built-in Impact Printer

The built-in impact printer incorporated into the HI122 uses regular paper that does not fade with time. The information related to measurements being taken can be printed while in measurement mode, GLP or Setup mode. This meter also allows users to print detailed information in four languages for specific help screens and instrument set-up.

HI1131P pH Electrode

The pH Meter with Built-in Printer HI122 is supplied with the HI1131P glass body, double junction, refillable pH electrode with an indicating sensor made of High Temperature (HT) glass. The double junction and HT glass design allows the HI1131P to be used in a wide variety of applications ranging from samples with metals and Tris buffer to samples at elevated temperatures.

Temperature Compensation

Temperature for pH measurements can be compensated for automatically (ATC) or manually (MTC) from -20.0 to 120.0°C with the use of the supplied HI7662-T temperature probe.

GLP Data

The calibration data for each channel including date, time, standards used, offset, and slope can be accessed at any time through the menu of this pH Meter with Built-in Printer.

Data Logging

The log-on-demand feature accepts the recording of 50 samples. Interval logging allows up to 1000 data points to be recorded and allows the user to specify time intervals from 5 seconds to 180 minutes.

Data Transfer

With a built-in logging function, measurements are stored in non-volatile memory and can be transferred to a PC through the RS232 port.

Specifications

SKU	HI122-01
pH Range	pH: -2.000 to 16.000, -2.00 to 16.00; mV: ±999.9, ±2000
pH Resolution	pH: 0.01, 0.001; mV: 0.1, 1
pH Accuracy (@25°C/77°F)	±0.01 pH, ±0.002 pH; ±0.2 mV (±699.9 mV); ±0.5 mV (±999.9 mV); ±1 mV (±2000 mV)
pH Calibration	automatic, up to five-point calibration with seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) and two custom buffers
pH Temperature Compensation	automatic or manual from -20.0 to 120.0 °C
Temperature Range	-20.0 to 120.0˚C, -4.0 to 248.0 °F
Temperature Resolution	0.1°C (0.1°F)
Temperature Accuracy	±0.4°C (±0.7°F)
pH Electrode	HI1131P pH electrode
Temperature Probe	HI7662-T stainless steel temperature probe with 1 m (3.3’) cable (included)
Power Supply	12 VDC adapter (included)
Environment	0 to 50°C (32 to 122°F), RH max 95% non-condensing
Dimensions	280 x 203 x 84 mm (11.0 x 8.0 x 3.3’’)
Weight	1.9 kg (4.2 lbs.)
Ordering Information	HI122-01 (115V) and HI122-02 (230V) are supplied with HI1131P pH electrode, HI7662-T temperature probe, HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet, HI7082 3.5M KCL electrolyte solution (30 mL), (5) paper rolls, 12 VDC adapter and instructions.*
Special Notes	*Contains built-in dot matrix printer, with 44 mm plain paper
Warranty	2 years
