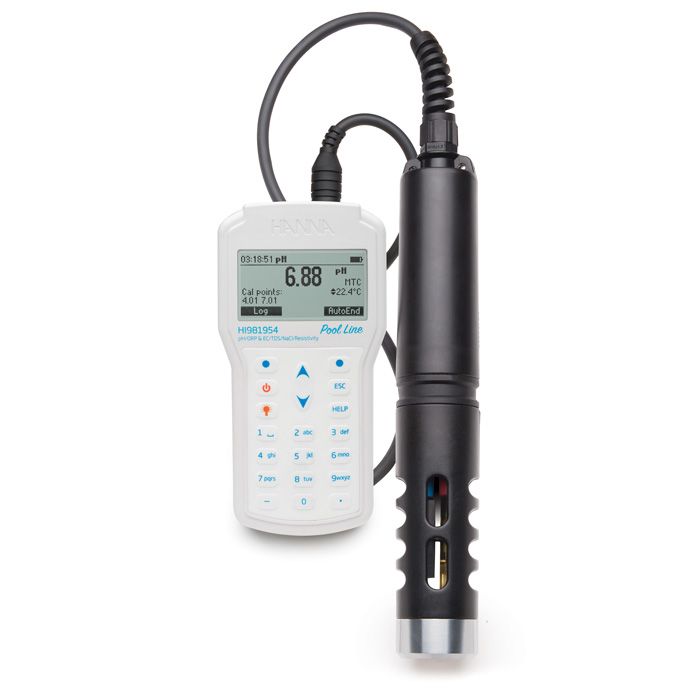

Pool Line HI98195 pH/EC multiparameter portable meter supplied with HI7698195 probe with 4 meter cable - HI981954
pH Features • Calibration · Up to a three-point calibration with five standard buffers and one custom buffer available • pH in mV option · Useful for diagnostics • GLP data · Offset, slope, date, time and buffers used • Automatically temperature compensated readings • pH or pH/ORP field replaceable sensors · Gel filled and maintenance free · Double junction for reduced contamination of reference cell EC/TDS/Resistivity Features • Calibration · Single-point calibration from six standards • Temperature compensation · Automatic Temperature Compensation · Configurable temperature coefficient range from 0.00 to 6.00%/°C · Choice of reference temperatures at 20 or 25°C · Absolute conductivity can be displayed along with the temperature compensated value • Auto-ranging • Salinity readings · Practical Salinity Scale (PSU) based on conductivity calibration
Backlit Graphic LCD Display
The HI981954 features a backlit graphic LCD with on-screen help and the capability to display up to nine parameters simultaneously. The graphic display allows for the use of virtual keys to provide for an intuitive user interface.
Automatic Temperature Compensation
Integrated temperature sensor allows for automatic temperature compensation of pH and conductivity measurements.
Waterproof Protection
The meter is enclosed in an IP67 rated waterproof casing and can withstand immersion in water at a depth of 1 m for up to 30 minutes. The probe features an IP68 rating for continuous immersion in water
Dedicated Help Key
Contextual help is always available through a dedicated “HELP” key. Clear tutorial messages and directions are available on-screen to quickly and easily guide users through setup and calibration. The help information displayed is relative to the setting/option being viewed.
GLP Data
HI981954 includes a GLP feature that allows users to view calibration data and calibration expiration information at the touch of a key. Calibration data includes date, time, buffers/ standards used for calibration, and slope characteristics.
PC Connectivity
Logged data can be transferred to a Window’s compatible PC with the included HI920015 micro USB cable and HI9298194 software.
Quick Connect Digital Probe
The HI7698195 probe features a Quick Connect DIN connector that makes a waterproof connection with the meter.
Long Battery Life
The display of the meter has a battery icon indicator to show the remaining power. The meter uses four 1.5V AA batteries that provide up to 360 hours of battery life.
Color Coded, Field Replaceable Sensors
Sensor replacement is quick and easy with field replaceable, screw type connectors that are color coded for easy sensor port identification
Data Logging
The HI981954 allows users to store up to 45,000 continuous or log-on-demand samples with logging intervals from one second to three hours.
Standard or Quick Calibration
Quick Calibration provides a speedy, single point calibration for pH and conductivity. Standard pH calibration options are available for calibrating up to three points from a selection of five standard buffers and one custom buffer. Conductivity calibration is a single point from six standard selections or one custom standard.
Intuitive Keypad
The fitted rubber keypad has dedicated keys for power, backlight, up/down arrows, help and alphanumeric characters. The meter also features two virtual soft keys that navigate the user through the configuration of each parameter, meter setup, and logging of data. The interface is intuitive for any user’s level of experience.
Auto-sensor Recognition
The probe and meter automatically recognize the sensors that are connected. Any ports not used on the probe will not have the parameter displayed or be configurable.
Rugged Custom Carrying Case
The HI981954 meter, probe, and all accessories are supplied in a rugged carrying case designed to provide years of use. The inside compartment of the carrying case is thermoformed to securely hold and protect all of the components.
Specifications
| pH / mV | Range Resolution Accuracy Calibration | 0.00 to 14.00 pH / ±600.0 mV 0.01 pH / 0.1 mV ±0.02 pH / ±0.5 mV automatic one, two, or three points with automatic recognition of five standard buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01) or one custom buffer |
|---|---|---|
| ORP | Range Resolution Accuracy Calibration | ±2000.0 mV 0.1 mV ±1.0 mV automatic at one custom point (relative mV) |
| EC | Range ResolutionAccuracyCalibration | 0 to 200 mS/cm (absolute EC up to 400 mS/cm) manual: 1 µS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm; 1 mS/cm; automatic: 1 µS/cm from 0 to 9999 µS/cm; 0.01 mS/cm from 10.00 to 99.99 mS/cm; 0.1 mS/cm from 100.0 to 400.0 mS/cm; automatic mS/cm: 0.001 mS/cm from 0.000 to 9.999 mS/cm; 0.01 mS/cm from 10.00 to 99.99 mS/cm; 0.1 mS/cm from 100.0 to 400.0 mS/cm±1% of reading or ±1 µS/cm whichever is greaterautomatic single point, with six standard solutions (84 µS/cm, 1413 µS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) or custom point |
| TDS | Range ResolutionAccuracyCalibration | 0.0 to 400.0 ppt (g/L) (the maximum value depends on the TDS factor) manual: 1 ppm (mg/L); 0.001 ppt (g/L); 0.01 ppt (g/L); 0.1 ppt (g/L); 1 ppt (g/L); automatic: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L); 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L); 0.1 ppt (g/L) from 100.0 to 400.0 ppt (g/L); automatic ppt (g/L): 0.001 ppt (g/L) from 0.000 to 9.999 ppt (g/L); 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L); 0.1 ppt (g/L) from 100.0 to 400.0 ppt (g/L)±1% of reading or ±1 ppm (mg/L) whichever is greaterbased on conductivity or salinity calibration |
| Resistivity | Range Resolution Accuracy Calibration | 0 to 999999 Ω•cm; 0 to 1000.0 kΩ•cm; 0 to 1.0000 MΩ•cm dependent on resistivity reading based on conductivity or salinity calibration 0.00 to 70.00 PSU |
| Salinity | Range Resolution Accuracy Calibration | 0.00 to 70.00 PSU 0.01 PSU ±2% of reading or ±0.01 PSU whichever is greater based on conductivity calibration |
| Seawater σ | Range Resolution Accuracy Calibration | 0.0 to 50.0 σt, σ₀, σ₁₅ 0.1 σt, σ₀, σ₁₅ ±1 σt, σ₀, σ₁₅ based on conductivity or salinity calibration |
| Temperature | Range Resolution Accuracy Calibration | -5.00 to 55.00°C; 23.00 to 131.00°F; 268.15 to 328.15K 0.01°C; 0.01°F; 0.01K ±0.15°C; ±0.27°F; ±0.15K automatic at one custom point |
| Additional Specifications | Temperature Compensation Logging MemoryLogging Interval PC Connectivity Environment Battery Type / LifeDimensions / Weight | automatic from -5 to 55°C (23 to 131°F) 45,000 records (continuous logging or log-on-demand of all parameters) one second to three hours via USB (with Hanna PC software) 0 to 50°C (32 to 122°F); RH 100% IP67 1.5V AA batteries (4) / approximately 360 hours of continuous use without backlight (50 hours with backlight) 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”) / 400 g (14.2 oz.) |
| Ordering Information | HI981954 is supplied with HI7698195/4 multiparameter probe with 4m (13’) cable, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI7698295 short protective probe shield, HI9828-20 quick calibration solution, HI76981952 probe maintenance kit, HI7698290 calibration beaker, HI9298194 PC software, HI920015 micro USB cable, batteries (4), quality certificate, and instruction manual in a rugged carrying case with custom insert. |
|---|---|
| Accessories | HI710034 orange protective rubber boot |
