SKU
HI98169

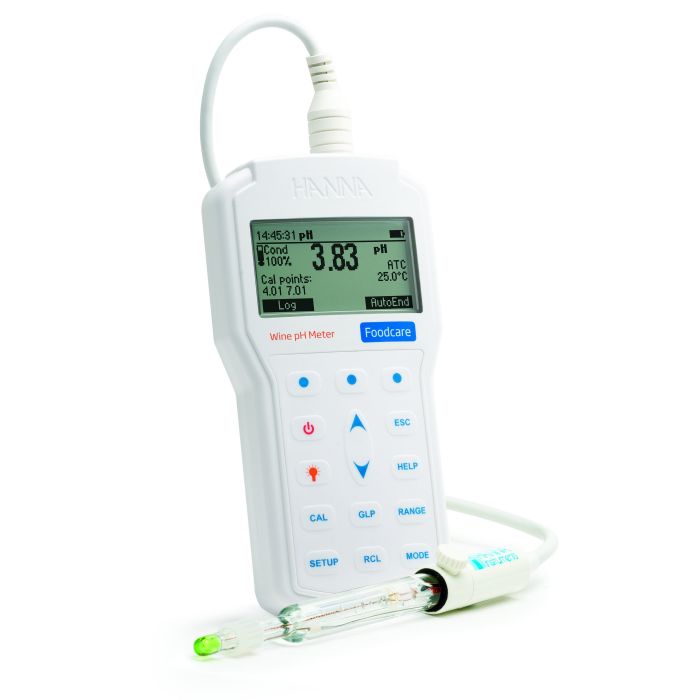

pH meter for wine - HI98169

Special Price €538.43 Regular Price €633.45
In stock

HI98169 is a robust, waterproof, portable pH meter for wine that measures the pH and temperature of must in winemaking. This meter comes with a specialized pH probe that has open connection properties with clogging prevention system (CPS)

Waterproof · IP67 rated waterproof, rugged enclosure

CAL Check™ · Alerts users to problems during calibration including dirty/broken electrode, contaminated buffer and overall probe condition

• Automatic or manual temperature compensation · pH sensors incorporate a builtin temperature sensor

• Calibration · Up to a five-point calibration with seven standard buffers and five custom buffers

• Approximately 200 hour battery life · Powered by four 1.5V AA batteries

• Clear display · Dot matrix display with multifunction virtual keys

• Auto hold · Automatically holds the first stable reading on the display

• Calibration timeout · Alerts when calibration is due at a specified interval

• Connectivity · PC connectivity via opto-isolated micro-USB with HI92000 software

• GLP · GLP data provides data from previous calibration to ensure Good Laboratory Practices are met

• Intuitive keypad · Important and often used functions such as GLP information, help, range, calibration and backlight have a dedicated button

• Supplied complete · Each meter is supplied complete with sensor, calibration and cleaning solutions, beakers, PC software and connection cable, instruction manual, quick start guide, and batteries in a rugged, custom carrying case

Wine pH Meter

designed for wine making professionals Hanna foodcare pH meters are rugged and portable with the performance and features of a benchtop. Eight models are available in this series to measure food, milk, meat, yogurt, cheese, beer, wine, and soil. Each model is supplied with an application specific electrode and cleaning solutions. These waterproof meters comply to IP67 standards and can be easily operated with one hand

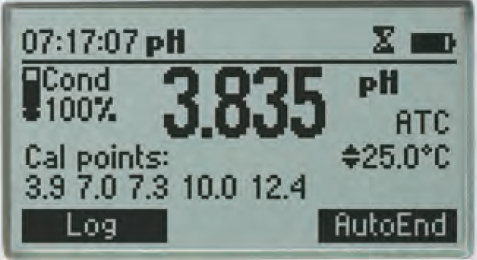

Backlit Graphic LCD Display

These meters feature a backlit graphic LCD with on-screen help. The graphic display allows for the use of virtual keys to provide for an intuitive user interface.

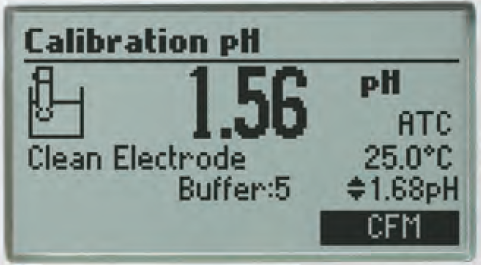

pH Calibration

Choose from seven standard pH buffers and five custom values to obtain up to five point calibration and achieve high precision readings with a 0,001 pH resolution and a pH accuracy of ±0,002.

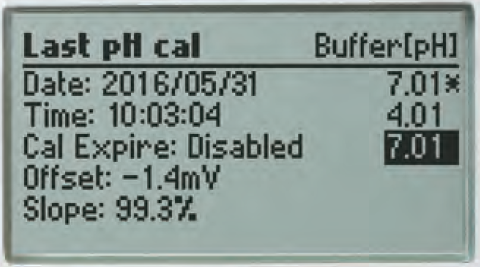

GLP

Comprehensive GLP functions are directly accessible by pressing the GLP key. Calibration data, including date, time, and calibration values are stored with logged data for retrieval at a later time.





CAL Check™

Hanna’s CAL Check maintains a history of past calibrations and monitors the pH electrode and buffers during subsequent calibrations for any signs of wide variances due to a dirty or broken electrode or contaminated pH buffers. During calibration, users are alerted to problems should they occur. After calibration, the electrode’s overall condition is displayed as a percentage.

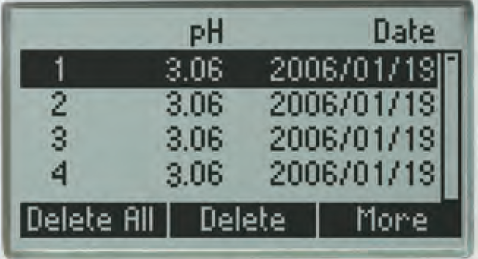

Data Logging

The log-on-demand feature allows users to store up to 200 samples that can later be transferred to a PC with the HI920015 USB cable and HI92000 software.





Auto Hold

Pressing AutoEnd during measurement will automatically hold the first stable reading on  the display.





Quick Connect Probe Each meter features an application specific pH/temperature probe with a quick connect DIN connector to make attaching and removing the probe simple and easy.





Dedicated Help Key

Contextual help is always available through a dedicated “HELP” key. Clear tutorial messages and directions are available on-screen to quickly and easily guide users through setup and calibration. The help information displayed is relative to the setting/option being viewed.





Supplied Complete in a Rugged Custom Carrying Case

Each meter is supplied complete with sensor, calibration and cleaning solutions, beakers, PC software and connection cable, instruction manual, quick start guide, and batteries in a rugged, custom carrying case? The inside compartment of the carrying case is thermoformed to securely hold and protect all of the components?



Specifications

pH*

Range

-2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH



Resolution

0.1 pH; 0.01 pH; 0.001 pH



Accuracy

±0.1 pH; ±0.01 pH; ±0.002 pH



Calibration

up to five-point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) and five custom buffers



Temperature Compensation

automatic or manual from -20.0 to 120.0°C (-4.0 to 248.0°F)

mV

Range

±2000 mV



Resolution

0.1 mV



Accuracy

±0.2 mV



Relative mV Offset Range

±2000 mV

Temperature*

Range

-20.0 to 120.0 °C (-4.0 to 248.0°F)



Resolution

0.1°C (0.1°F)



Accuracy

±0.4°C (±0.8°F) (excluding probe error)

Additional Specifications

pH Probe

FC10483 preamplified pH and temperature probe with flat tip, DIN connector and 1 m (3.3’) cable



Slope Calibration

from 80 to 110%



Log-on-demand

Up to 200 samples (100 pH, 100 mV)



PC Connection

opto-isolated USB with HI92000 software and micro USB cable



Input Impedance

10¹² Ω



Battery Type / Life

1.5V AA batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight)



Auto-off

user selectable: 5, 10, 30, 60 min, disabled



Environment

0 to 50°C (32 to 122°F); RH 100% IP67



Dimensions / Weight

185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”) / 400 g (14.2 oz.)

Ordering Information

HI98169 is supplied with FC10483 pH electrode, pH 3.00 buffer solution sachets (2), pH 7.01 buffer solution sachets (2), HI700635 Cleaning solution for wine deposits sachet, HI700636 cleaning solution for wine stains sachet, 100 mL plastic beaker (2), HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, guidebook for winemakers, and quality certificate in a HI720169 hard carrying case with custom insert.

Accessories

HI710035 blue protective rubber boot
