pH Electrode for use with HI8314 - HI1217D

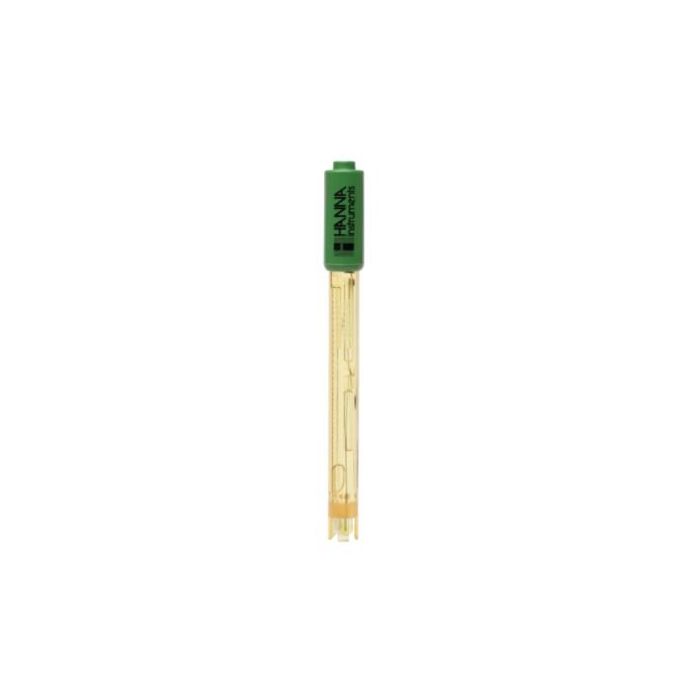

The HI1217D is a PEI body, single ceramic junction pH electrode with a DIN connector. This design consideration is ideal general purpose laboratory use.
- No need to refill electrolyte.
- Made for use use with the HI8314 pH meter.
- Great for general purpose laboratory use.
Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations. The HI1217D uses general purpose (GP) glass, spherical bulb, polyetherimide (PEI) body, single ceramic frit, and double junction.
General Purpose Glass FormulationThe measurement of pH at very high temperatures is detrimental to the sensitive glass bulb and will shorten the life of it. A pH electrode with general purpose (GP) glass will have a resistance of 100 megaohms at 25°C while the resistance of LT glass is around 50 megaohms at 25°C. As the temperature of the glass decreases in the sample, the resistance of the LT glass will approach that of GP glass. If using GP glass, the resistance would increase above the optimum range, resulting in increased impedance and ultimately affecting the measurement. The HI1332B is suitable to use with samples that measure from 0 to 70°C.
Spherical BulbThe spherical bulb is for general purpose use. Other tip shapes include conic for penetration and flat tip for surface measurements.
PEI BodyThe body of the pH electrode is composed of polyetherimide (PEI) resin. The PEI body is suitable for a wide range of applications and excels in field measurements due to its durability. The shielding around the spherical glass tip minimizes breakage due to accidental bumping or dropping of the electrode. The PEI plastic is a high quality plastic that is chemically resistant to many aggressive chemicals.
Double Junction ReferenceA double junction electrode has an internal compartment surrounding the reference wire. Silver ions are present in the electrolyte of the internal compartment, which houses the Ag/AgCl reference wire; the electrolyte outside this compartment is silver free. The double junction design means that virtually no silver from the electrode enters the sample. This design allows measurement in applications where silver ions in the sample are undesirable or silver precipitates on the junction are likely to form.
DIN ConnectorThe HI1217D uses a DIN connector. This type of connector is made only for the HI8314 pH meter. Other type of connectors include BNC, screw type, T-type, and 3.5mm to name a few. These types of connectors tend to be proprietary for a particular type of meter and are not interchangeable. Single junction electrodes use a fill solution such as the HI7071 that contains 3.5M KCl, while double junction electrodes typically use HI7082 that contains 3.5M KCl. Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations. The HI1217D uses general purpose (GP) glass, spherical bulb, polyetherimide (PEI) body, single ceramic frit, and double junction.
|Junction / Flow Rate||ceramic, single|
|Max Pressure||2 bar|
|Range||pH: 0 to 13|
|Recommended Operating Temperature||0 to 70°C (32 to 158°F) - GP|
|Tip / Shape||spheric (dia: 5.0 mm)|
|Cable||coaxial; 1 m (3.3’)|
|Recommended Use||general purpose|
