SKU
HI200M-2

Magnetic Mini-Stirrer with Stainless Steel Cover - HI200M-2

€262.00
In stock

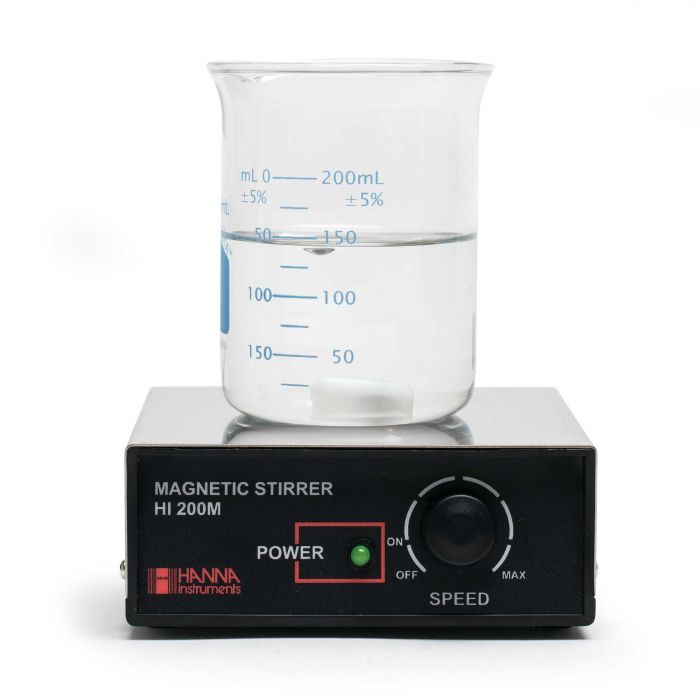

HI200M is a compact and lightweight magnetic mini-stirrer with an AISI 316 stainless steel cover. The stainless steel top is ideal for stirring samples that are undergoing an exothermic reaction that could damage the cover of a stirrer made of plastic. The stirring speed is adjustable from 100 to 1000 RPM. The HI200M stirrer requires very little room which is valuable when laboratory benchtop space is at a premium.
  • Speedsafe™ mechanism
  • Stainless Steel Top
  • Adjustable speed control

Details:

Ideally, when performing electrochemistry measurements, the sample being tested should be stirred. The use of a magnetic stirrer allows for proper mixing and the sample to be homogenous in consistency and temperature. The stirring of the sample also helps speed up the response time for a sensor to achieve a stable reading.

Compact & Cost-Effective

The HI200M magnetic mini-stirrer is compact and lightweight, allowing for easy handling in the laboratory environment. The limited area on laboratory benchtops is no longer a concern with this durable, space-saving stirrer. Power-indicating LED lights also assure users at a distance that the stirrer is in operation. The durable plastic covering will resist the harmful effects of accidentally spilled chemicals. The HI200M magnetic mini-stirrer is cost-effective for the customer that does not need the added expense of a heating element. The advanced design incorporates electronic controls that allow the user to easily regulate the speed with great precision.

Stainless Steel Cover

HI200M stirrer comes supplied with an AISI 316 stainless steel cover atop the ABS body. The cover is an ideal solution for applications in which exothermic reactions occur. The AISI 316 type of steel is known to have increased resistance to chloride corrosion as well.

Speedsafe

Often in the lab, a sample is removed from a stirrer before the speed is adequately reduced. Normally this would cause the internal motor to accelerate until it is damaged. To control the speed from changes in viscosity or removing of the load the HI200M magnetic mini-stirrer incorporates the Speedsafe mechanism. With Speedsafe, a speed sensing device (opto-sensor) is coupled with an FVC (frequency voltage converter) to monitor the stirring speed. As the speed reaches a preset maximum level, the speed limiter shuts down the VCO (voltage-controlled oscillator) to slow down the motor speed. This ensures that when the load is suddenly removed from the stirrer, the motor will not accelerate to such a high speed that will be hazardous to both the user and the stirrer; a feature not commonly found in conventional stirrers.

Fuse Protection

For safety, in the event of a short circuit, the HI200M is equipped with a replaceable fuse. The circuitry of the HI200M is grounded to the case for additional protection



Specifications

Sku

HI200M-2

Maximum Stirring Capacity

1 liter (0.26 gallons)

Speed Range Min

100 rpm

Speed Range Max

1000 rpm

Power Supply

110/115 Vac, 50/60 Hz

Installation Category

II

Cover Material

AISI 316 Stainless Steel

Environment

0 to 50˚C (32 to 122˚F); RH max 95%

Dimensions

120 x 120 x 45 mm (4.8 x 4.8 x 1.8")

Weight

710 g (1.6 lb.

Warranty

2 years
