SKU
HI7214

Iron Low Range and High Range

€67.00
In stock

Handheld Colorimeters


• Easier to use and more accurate than chemical test kits


• Dedicated to a single parameter


• Small size, big convenience


• Ideal for:


· Industrial ground and treated waters
· Mining leachate monitoring
· Agricultural irrigation water
· Pools and spas

About 6.3% of the earth’s crust is made of iron, of which 43% is in soils. The analysis ofiron is often performed to monitor ground water and irrigation waters as a gauge of corrosion from industrial settling, and as an indication of the effectiveness of treatment from mining leachate.

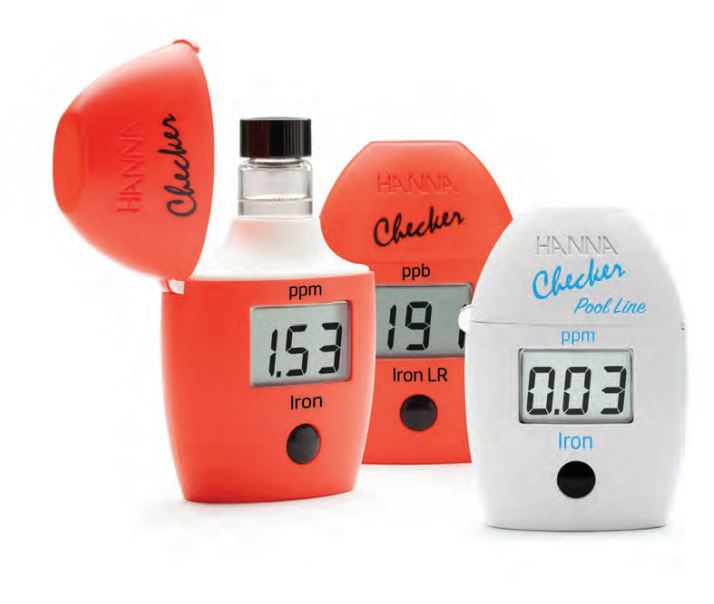

The Hanna HI746, HI721, and HI7214 Checker®HC bridge the gap between simple chemical test kits and professional
instrumentation. Chemical test kits are not very accurate and only give 5 to 10 points of resolution, while professional
instrumentation can cost hundreds of dollars and can be time-consuming to calibrate and maintain. These meters are accurate,affordable, and produce immediate results.



The HI721 and HI7214 features a resolution of 0.01 ppm and ±0.04 ppm ±2% of reading accuracy while the HI746 features 1 ppb resolution and ±20 ppb ±5% of reading accuracy. The contoured style of these meters fit in
your palm or pocket perfectly and the large LCD is easy to read. The auto shut-off feature assures battery life will not be drained if you forget to turn it off.







Specifications

Range

0.00 to 0.90 ppm 0.00 to 2.50 ppm 0.0 to 30.0 ppm

Resolution

0.01 ppm 0.01 ppm 0.1 ppm

Accuracy@25°C (77°F)

±20 ppb ±5% of reading ±0.04 ppm ±2% of reading

Light Source

LED @ 525 nm

Light Detector

silicon photocell

Environment

0 to 50°C (32 to 122°F); RH max 95% non-condensing

Battery Type

1.5V AAA (1)

Auto-off

after seven minutes of non-use

Dimensions

86.0 x 61.0 x 37.5 mm (3.4 x 2.4 x 1.5”)

Weight

64 g (2.3 oz)

Method

adaptation of the TPTZ method. The reaction between iron and the reagent causes a violet tint in the sample.

Ordering Information

HI746 Checker®HC is supplied with sample cuvettes with caps (2), iron LR reagent starter kit (reagents for 25 tests), 25 mL glass cylinders with rubber cap (2), battery, and instructions.
HI721 Checker®HC is supplied with sample cuvettes with caps (2), iron HR reagent starter kit (reagents for 6 tests), battery, and instructions.
HI7214 Checker®HC is supplied with sample cuvettes with caps (2), iron HR reagent starter kit (reagents for 6 tests), battery, and instructions.

Reagent Set

HI746-25 (25 tests) HI721-25 (25 tests) HI721-25 (25 tests)

Calibration Set

HI746-11 HI721-11 HI721-1
