SKU
HI7639

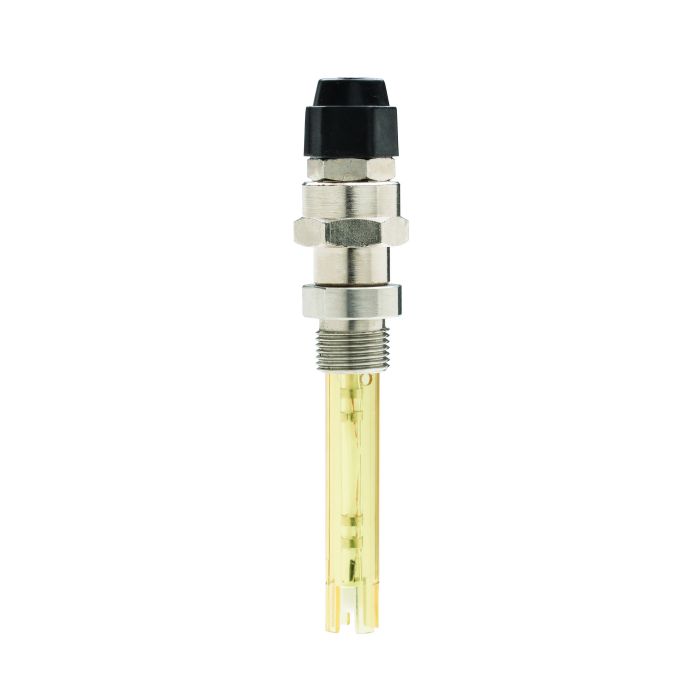

In-line Conductivity Probe - Platinum Ring, Pt100 Sensor, 3m Color-coded Cable - HI7639

€315.18
In stock
This four-ring in-line probe measures conductivity in industrial applications with a platinum ring and Pt100 temperature sensor for Automatic Temperature Compensation. With it's durable design, you can count on this electrode to stand up to your process environment.
  • Four-ring probes measure conductivity with platinum sensors.
  • Built-in temperature sensor for Automatic Temperature Compensation.
  • Built for everyday, demanding use in industrial applications.

In-line conductivity probe

Suitable for direct immersion in pipes.

Four-ring method

Provides an exceptionally stable measurement over a wider range. These probes do not suffer polarization, nor do they need frequent calibration or cell changes.

Built-in Pt100 temperature sensor

Provide accurate and effective temperature compensation.

Color coded wires

3m cable incorporating color coded wires for easy connection to transmitters .

Platinum sensor

Provides the best response over a wide range of applications.

PEI body

PEI bodied electrodes are rugged and suitable for noncritical applications that require a very good combination of chemical, mechanical, and thermal resistance.



Specifications



Body Material

PEI, glass

Sensor Type

Pt 100

Glass type

(0 to 120°C/ 32 to 248°F)

Matching Pin

No

Temperature Compensation Range

Automatic, 0 to 50°C

Max. pressure

5 bar (72.5 psi)

Temperature Sensor

Yes

Connector Type

Color coded wires

Amplifier

No

Cable

3m
