SKU
HI3214P

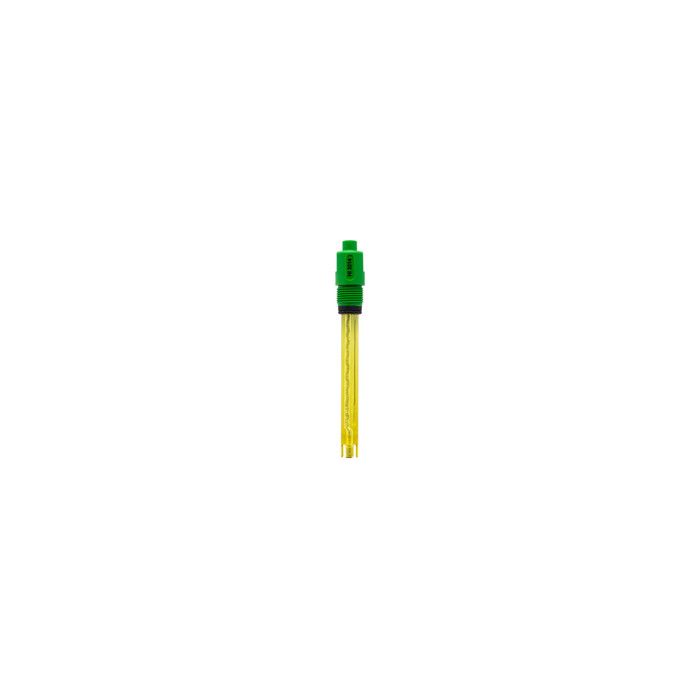

HI3214P ORP ELECTRODE WITH PLATINUM PIN

€104.00
In stock

The HI3214P brings the ability to test ORP to any user at an affordable price. The polyetherimide (PEI) body protects against accidental breakage while the spherical glass tip is perfect for aqueous samples due to the large surface area. Suitable for samples from 0 to 80°C (32 to 176°F), this electrode is perfect for any general agriculture application with the HI981406 meter.

  • PEI body offers increased durability
  • Cloth junction protects against clogging
  • Universal BNC connector makes this the perfect replacement electrode

PEI Body

The body of the HI3214P is composed of polyetherimide (PEI) resin. The PEI body is suitable for a wide range of applications and excels in field measurements due to its durability. The shielding around the spherical glass tip minimizes breakage due to accidental bumping or dropping of the electrode. The PEI plastic is a high quality plastic that is chemically resistant to many aggressive chemicals.

Cloth Junction

With a renewable cloth junction, the HI3214P has an extended life over typical ORP electrodes. A normal junction clogs with use over time and a typical electrode would normally have to be thrown away once the junction becomes contaminated.

Double Junction Reference

A double junction electrode has an internal compartment surrounding the reference wire. Silver ions are present in the electrolyte of the internal compartment, which houses the Ag/AgCl reference wire; the electrolyte outside this compartment is silver free. The double junction design means that virtually no silver from the electrode enters the sample. This design allows measurement in applications where silver ions in the sample are undesirable or silver precipitates on the junction are likely to form.

BNC Connector

The HI3214P uses a BNC connector. This type of connector is universal in that it can be used on any pH meter that has the female BNC probe input.





Specification Name Detail
SKU HI3214P
Junction / Flow Rate cloth
Electrolyte gel
Max Pressure 3 bar
Range ORP: ±2000 mV
Recommended Operating Temperature 0 to 80°C (23 to 176°F) - GP
Tip / Shape platinum pin
Diameter 12 mm
Body Length 122 mm
Temperature Sensor no
Matching Pin no
Amplifier no
Body Material PEI
Cable coaxial; 2 m (6.6')
Connection multi-pin BNC
