SKU
FC202D

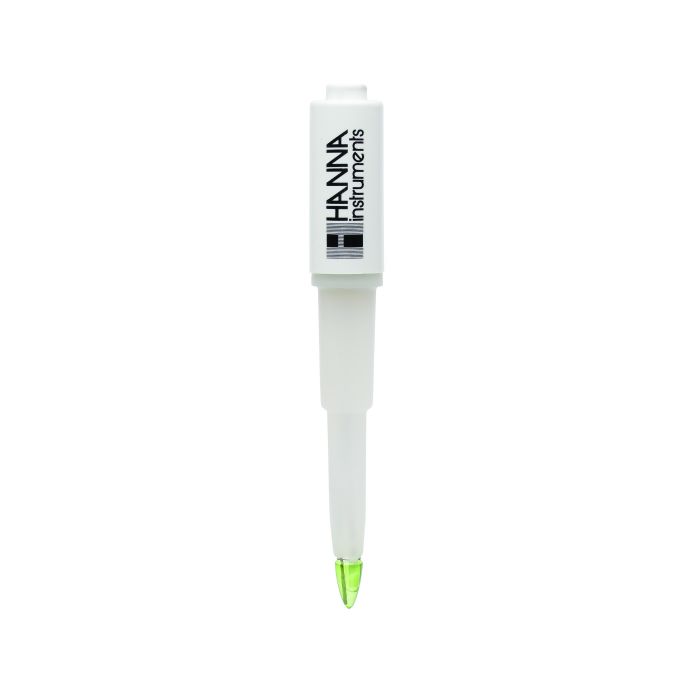

Foodcare pH Electrode for Dairy Products - FC202D

€224.00
In stock
Specialized for measuring the milk pH and pH in semi-solid foods, including dairy products, the FoodCare pH electrode FC202D is an essential tool in the kitchen or food lab. Fitted with a 1m cable and a 7-pin DIN connector, this pH electrode is designed for use with the HI99161 Portable Food and Dairy pH Meter.
  • Easy to clean PTFE body.
  • Conical electrode tip for quick penetration into food and dairy products.
  • Great for use in small food and dairy operations as well as for hobbyists

Details:

Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations. The FC202D is an amplified FoodCare pH electrode with a built-in temperature sensor; perfect for measuring the pH of foods. This probe is designed with low temperature (LT) glass, conical bulb, food-grade PVDF body, and open junction with viscolene gel electrolyte.

Low-Temperature Glass Formulation

The glass tip uses a special LT glass formulation with a lower resistance of approximately 50 megaohms compared to general purpose (GP) with a resistance of about 100 megaohms. This is beneficial since many food products are stored at low temperatures. As the temperature of the glass decreases in the sample, the resistance of the LT glass will increase approaching that of GP glass at ambient temperatures. If using GP glass, the resistance would increase above the optimum resistance for the high impedance input of a pH meter.The FoodCare pH electrode FC202D is suitable to use with samples that measure from 0 to 50°C.

Conical Glass Tip

The conical-shaped tip design allows for penetration into solids, semi solids, and emulsions for the direct measurement of pH in food products including meat, cheese, yogurt, and milk.

PVDF Body

Polyvinylidene fluoride (PVDF) is a food grade plastic that is resistant to most chemicals and solvents, including sodium hypochlorite. It has high abrasion resistance, mechanical strength and resistance to ultraviolet and nuclear radiation. PVDF is also resistant to fungal growth.

Open Junction Reference

Suspended solids and proteins found in food products will clog a conventional ceramic reference junction. This clogging will impede the measurement circuit between the indicating electrode and the internal reference resulting in slower response time, erratic readings, and frequent electrode replacement. The open junction design consists of a solid gel interface (viscolene) between the sample and internal Ag/AgCl reference. This interface not only prevents silver from entering the sample, but also makes it impermeable to clogging, resulting in a fast response and stable readings.

DIN Connector

The FoodCare pH electrode FC202D uses a DIN connector that can only be used with the HI99161 portable pH/temperature meter.



Specifications

Specification Name Detail
SKU FC202D
Reference single, Ag/AgCl
Junction / Flow Rate open
Electrolyte viscolene
Max Pressure 0.1 bar
Range pH: 0 to 12
Recommended Operating Temperature 0 to 50°C (32 to 122°F) - LT
Tip / Shape conic (6 x 10 mm)
Diameter 6 mm
Body Length 75 mm / 130 mm
Temperature Sensor yes
Matching Pin no
Amplifier yes
Body Material PVDF
Cable 7-pole; 1 m (3.3')
Recommended Use dairy, milk, semi-solid foods, yogurt
Connection DIN
