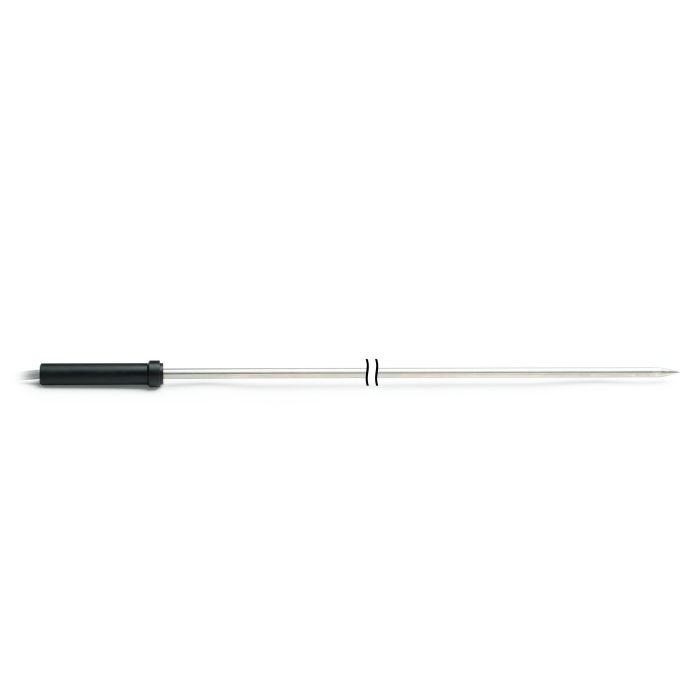

Extended Length Penetration K-Type Thermocouple Probe with Handle (1m) - HI766TR2

In stock
The HI766TR2 is an extended length penetration K-type thermocouple probe with a handle designed for use with a thermocouple thermometer. A green cable extends 1 m (3.3') from the handle to the thermocouple connector with the meter. The sharp, pointed tip at the end of the 1 m probe allows users to obtain highly accurate temperature readings of semi-solids and liquids.
  • Measures up to 250°C (482°F)
  • 10 second response time
  • 1 m stainless steel sensor

The Extended Length Penetration K-Type Thermocouple Probe with Handle (1m) - HI766TR2 is designed to measure the temperature of semi-solids and liquid samples. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI766TR2 pointed tip construction offers a 10-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure surfaces up to 250°C (482°F).


Recommended Operating Temperature 250°C (482°F)
Response Time (90% of final value) 14 seconds
Body Length L 1000 mm x dia 10 mm (3.3' x 0.39")
Temperature Sensor yes
Body Material stainless steel
Cable polyurethane (PUR)/coiled; 1 m (3.3')
Recommended Use liquid, semi-solid products
Connection K-Type
