SKU
HI6101415

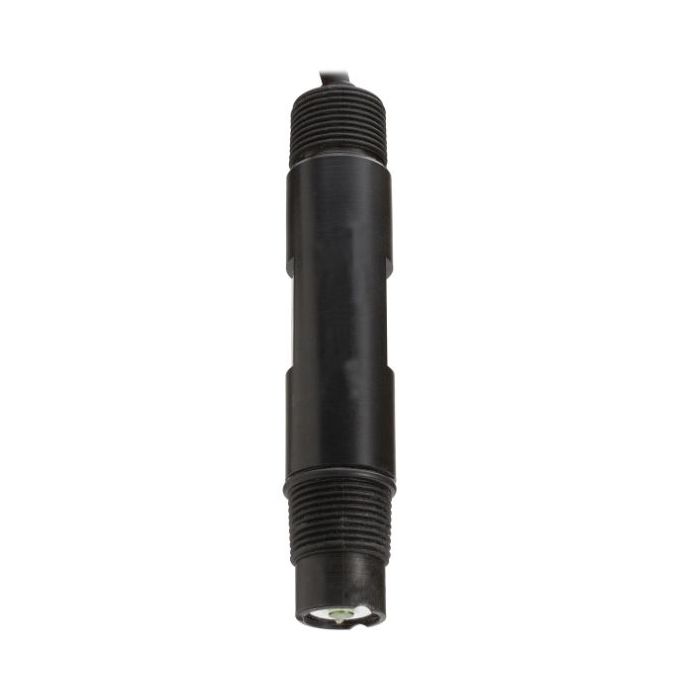

AmpHel® Flat-tip pH Electrode - General Purpose, 15m Cable, Pt100 Temperature Sensor, BNC + Lead Connector

€539.00
In stock

This amplified pH electrode is designed for industrial applications with features such as a PTFE junction, Pt100 temperature sensor, and PVDF body. With it's durable design, you can count on this electrode to stand up to your process environment.

  • Flat-tip pH electrode.
  • General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
  • Built for everyday, demanding use in industrial applications.

Flat tipped pH electrode

Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.

PTFE junction

The electrode has a unique clog resistant junction that enhances both probe life and accuracy.

PVDF body

PVDF offers characterized by high thermal stability and excellent chemical resistance.

BNC + lead connector

Allows for quick and easy connection to any pH/ORP meter or transmitter.

General purpose glass formulation

General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.

Built-in Pt100 temperature sensor

Ensures fast, accurately compensated readings even during sudden temperature fluctuations.



 Specifications



Specification Name Detail
SKU HI6101415
Range pH: 0-13
Tip Shape Flat
Body PVDF
Junction Double, PTFE
Glass Type GP (-5 to 80°C)
Electrolyte Polymer
Matching Pin Yes
Amplifier No
Temperature Sensor Yes
Temperature Sensor Type Pt100
Max Pressure 6 bar (87 psi)
Connector BNC + lead
Cable 15m
Warranty 6 months
