SKU
HI764080
edge® Compatible Digital DO/Temperature Electrode - HI764080
€496.00
In stock

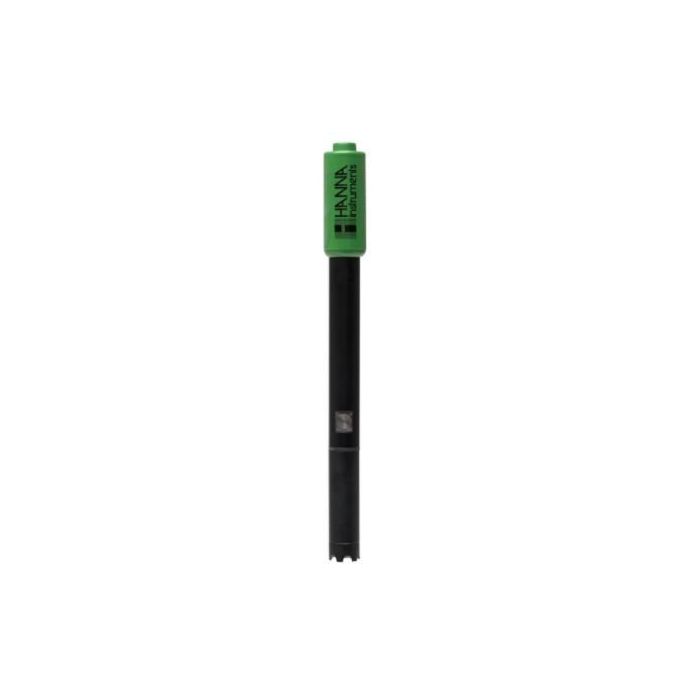

The HI 764080 is a digital dissolved oxygen electrode with a built-in temperature sensor. This ultra-thin, Clark-type polarographic electrode is designed for measuring DO in aqueous solutions and contains a built-in microchip that stores sensor type, serial number, and calibration information. The sensor features a platinum cathode with a silver/silver chloride anode, an integrated temperature sensor, and easily replaceable PTFE membrane caps. This probe features a 3.5 mm connector designed exclusively to be used with Hanna Instruments edge® Tablet Meters.
- Ultra-Thin Body
- Replaceable Membranes
- 3.5 mm Connector
Features at-a-glance:
- Digital Microprocessor
- Ultra-thin design – 12mm body for convenience
- Replaceable membranes – easy screw on for easy maintenance
- Polarographic sensor
- Built-in temperature sensor
- 3.5mm digital plug – easy to plug in, no alignment necessary
Specifications
| Specification Name | Detail |
|---|---|
| SKU | HI764080 |
| Reference | Ag/AgCl, glass encapsulated platinum |
| Range | 0 to 300% oxygen saturation |
| Recommended Operating Temperature | 0 to 50˚C (32 to 122˚F) |
| Tip / Shape | polarographic membrane |
| Body Length | 120 mm |
| Temperature Sensor | yes |
| Amplifier | no |
| Body Material | PEI |
| Cable | 1 m (3.3') |
| Recommended Use | edge multiparameter |
| Connection | 3.5 mm connector |
| Fast Shipping | No |
|---|
