SKU
HI7632-00

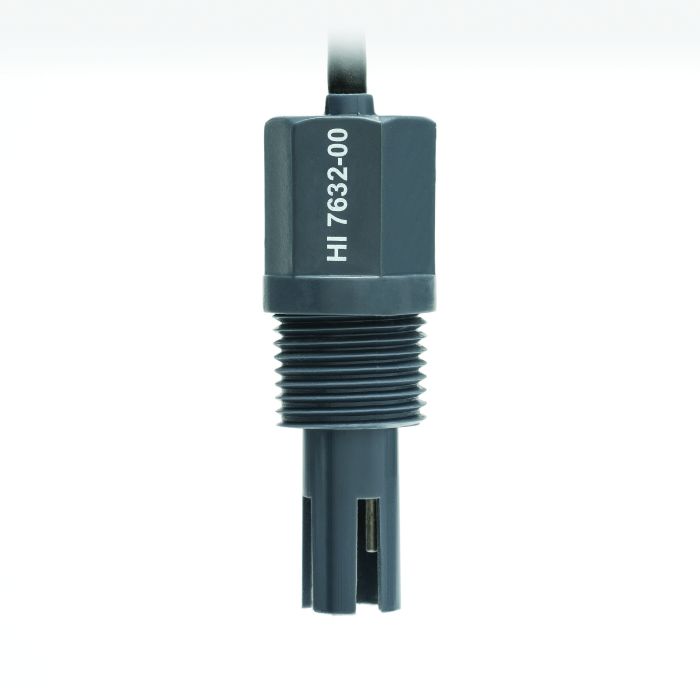

EC/TDS Probe for Mini Controller HI7632-00

€49.96
In stock
The HI7632-00 is a two-pole amperometric EC/TDS probe for panel mounted mini controllers that measure in the high range (mS/cm and ppt). This probe has a built-in temperature sensor for Automatic Temperature Compensation and a ½” male NPT threaded connection for insertion mounting. The HI7632-00 probe provides a rapid response and high accuracy EC or TDS measurement.

  • Two-pole amperometric probe
  • Internal temperature sensor
  • High range measurement (mS/cm and ppt

Details

Two-Pole Probe The HI7632-00 is an amperometric sensor, utilizing two-pole technology to achieve accurate EC and TDS measurements. An alternating voltage is applied to the two electrodes and the generated current is measured. The HI7632-00 is compatible with the following mini controllers that measure in the high range: EC:

  • BL983317 BL983327

TDS:

  • BL983318



Internal Temperature Sensor

The integrated temperature sensor of the HI7632-00 probe is crucial for accurate EC and TDS measurements. Changes in temperature of a solution will change the ion mobility, which will influence the measurement. For this reason it is important that a fast and stable temperature measurement be taken in order to provide an accurate temperature compensated EC and TDS reading.



Threaded Connection

The ½” NPT threaded connection of the HI7632-00 allows for insertion mounting into a common “T” fitting without the need for additional hardware.



Multiple Cable Lengths

The HI7632-00 is available with varying lengths of cable based on your specific requirements. HI7632-00 comes with 2 meters (6.6 feet) of cable attached. HI7632-00/6 comes with 6 meters (19.7 feet) of cable attached.



Specifications

Cable Length

2 m (6.6’) and 6 m (19.7’) based on selection

Probe Length

64 mm (2.5”)

Connection

½” threaded
