SKU
HI943500

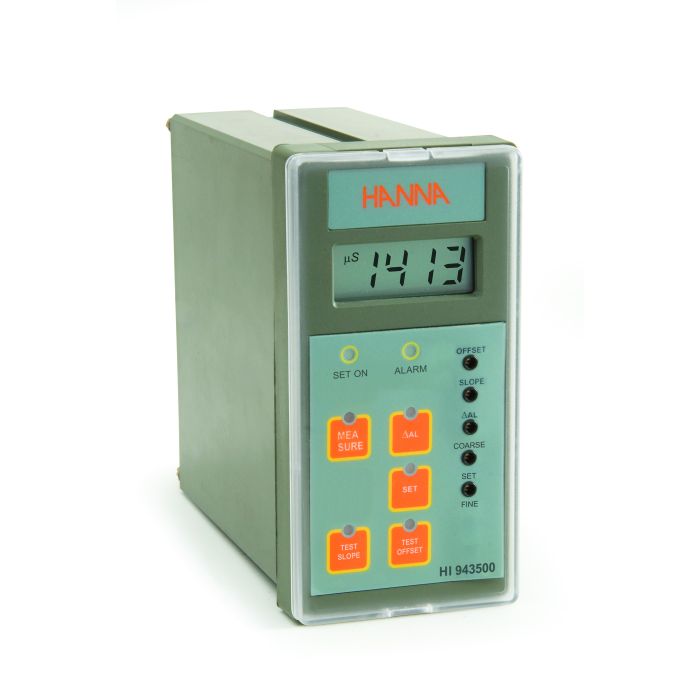

EC Analog Controller with Direct Input from Potentiometric Probe - HI943500

€680.00
In stock
HI943500 are panel-mounted conductivity controllers designed for simplicity of use in a wide range of industrial process applications. Four different models are available with different measurement ranges, to satisfy any application requirements.
  • Automatic temperature compensation ensures fast, accurately compensated readings even during sudden temperature fluctuations.
  • Four different models are available with different measurement ranges.
  • Displays values on the easy to read LCD with backlighting.

No Need for a Transmitter

These controllers allow the direct connection of a potentiometric conductivity probe (HI 7638) with a cable up to 20 meters long, without using any transmitter.

Self-testing Diagnostics

Designed with built-in diagnostic functions to enable the user to check and troubleshoot the instrument. The checks performed are through the front panel keys and can be used to isolate the cause of malfunction.

Visual Indicator

The LED on the front panel indicates the operating status of the controller.

Automatic Temperature Compensation

The automatic temperature compensation (ATC) is performed directly by the HI 7638 probe with built-in temperature sensor.

Friendly Interface

The instruments are designed with a standard DIN panel mount with membrane keypads on the front, a large LCD and with auto-diagnostic functions

Robust Design

A removable, transparent splash-proof cover protects the front panel

Specifications

sku

HI943500

EC Range

HI943500A: 0.0 to 199.9 mS/cm
HI943500B: 0.00 to 19.99 mS/cm
HI943500C: 0 to 1999 µS/cm
HI943500D: 0.0 to 199.9 µS/cm

EC Resolution

HI943500A: 0.1 mS/cm
HI943500B: 0.01 mS/cm
HI943500C: 1 µS/cm
HI943500D: 0.1 µS/cm


EC Accuracy (@20°C/68°F)

±2% F.S

Temperature Compensation

automatic, 0 to 60°C (32 to 140°F), with β=2%/°C

Calibration

manual, two point, through offset and slope trimmers

Recorder Output

4 to 20 mA (isolated)

Setpoint Relay

Isolated, 2A, Max. 240V, resistive

Probe

HI7635 for in-line applications or HI7638 for tank (not included)

Power Supply

115 or 230 Vac ±10% (user selectable); 50/60 Hz

Alarm Relay

load, 1,000,000 strokes

Environment

-10 to 50°C (14 to 122°F); RH 95%

Enclosure/ Case Material

DIN 43 700, 144x72 mm (5.7x2.8"), black anodized aluminum; front and back with shockproof ABS plastic, and transparent cover

Dimensions

141 x 69 mm (5.6 x 2.7")

Weight

1 kg (2.2 lb.)
