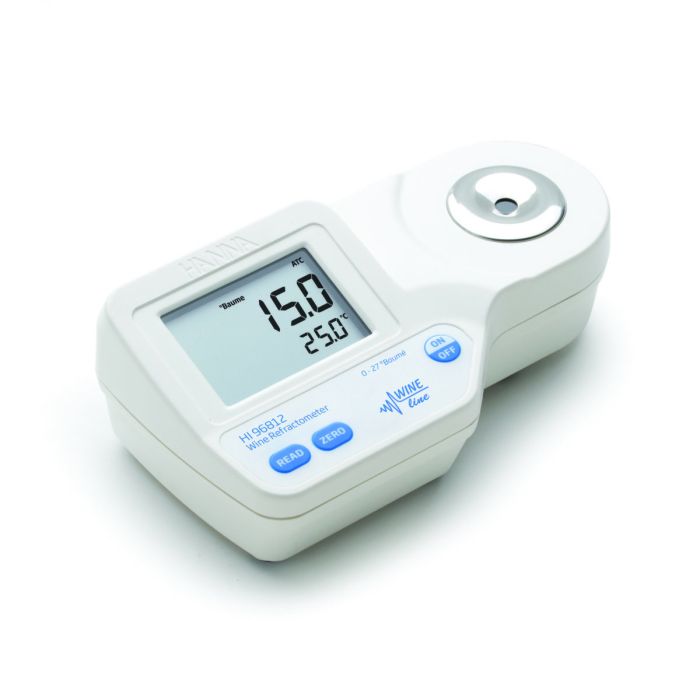

Digital Refractometer for Measurement of Sugar in Wine - HI96812
The HI96812 portable refractometer converts the % Brix of wine, juice or must sample to °Baume. This conversion is based on tables found in the Official Methods of Analysis of AOAC International, 18th Edition. One °Baume is approximately equal to 1.8% Brix and 1% alcohol when the wine is fully fermented. The HI96812 is an easy to use tool for winemakers for measuring sugar in grapes or must, in the field or in the lab.
- Designed for wine sugar analysis
- Temperature Compensation algorithms based on sucrose solution
- 0 to 28°Baume range with an accuracy of ± 0.1°Baume
Refractive Index
The HI96812 takes measurements based on a sample’s refractive index. Refractive index is a measurement of how light behaves as it passes through the sample. Depending on the sample’s composition, the light will refract and reflect differently. By measuring this activity with a linear image sensor, the sample’s refractive index can be assessed and used to determine its physical properties such as concentration and density. In addition to the linear image sensor, the HI96812 uses an LED light, prism and lens to make measurement possible.
Variations in temperature will affect the accuracy of refractometry readings, so the use of temperature compensation is highly recommended for reliable results. The HI96812 contains a built-in temperature sensor and is programmed with temperature compensation algorithms in accordance with the ICUMSA Methods Book Standard for a percent by weight sucrose.
Features-at-a-glance
- Calibrate with distilled or deionized water
- Sample size can be as small as 2 metric drops (100 μl)
- Readings are displayed in approximately 1.5 seconds
- The dual-level LCD displays °Baume and temperature readings simultaneously
- Battery percent level remaining at startup and low battery indicator
- To conserve battery life the meter shuts off automatically after three minutes of non-use
- Water resistant ABS plastic casing designed to perform under laboratory and field conditions.
- Easy to clean and corrosion-resistant
- Samples automatically compensated for temperature variations
Specifications
|
SKU |
HI96812 |
|
Sugar Content Range |
0 to 28°Baumé |
|
Sugar Content Resolution |
0.1°Baumé |
|
Sugar Content Accuracy |
±0.1°Baumé |
|
Temperature Range |
0.0 to 80.0°C (32.0 to 176.0°F) |
|
Temperature Resolution |
0.1°C (0.1°F) |
|
Temperature Accuracy |
±0.3°C (±0.5°F) |
|
Automatic Shut-Off |
after three minutes of non-use |
|
Battery Type / Life |
9V / approximately 5000 readings |
|
Enclosure Rating |
IP65 |
|
Dimensions |
192 x 102 x 67 mm (7.6 x 4.01 x 2.6”) |
|
Weight |
420 g (14.8 oz.) |
|
Refractometer Light Source |
yellow LED |
|
Refractometer Temperature Compensation |
automatic between 10 and 40°C (50 to 104°F) |
|
Minimum Sample Volume |
100 μL (to cover prism totally) |
|
Sample Cell |
stainless steel ring and flint glass prism |
|
Measurement Time |
approximately 1.5 seconds |
|
Ordering Information |
Supplied with battery and instruction manual. |
|
Warranty |
2 years |
