SKU
HI1210T

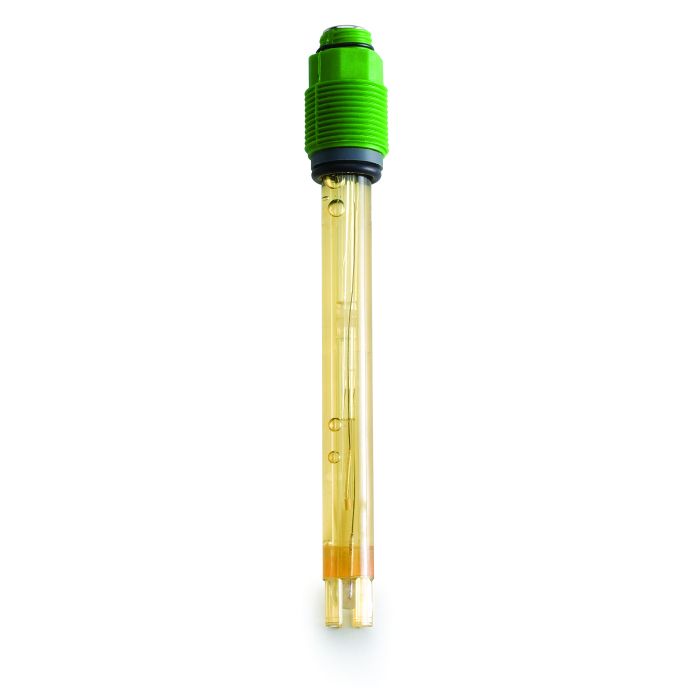

Combination PEI-body pH Electrode - General Purpose, T-type Connector - HI1210T

€113.00
In stock
This combination PEI-body pH electrode is designed for industrial applications with features such as a cloth junction, general purpose glass, and T-type connection. With it's durable design, you can count on this electrode to stand up to your process environment.
  • pH electrode with renewable cloth junction.
  • General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
  • Built for everyday, demanding use in industrial applications.

Combination electrode

Single combined electrode that has both sensing and reference components for added convenience.



PEI body

PEI bodied electrodes are rugged and suitable for noncritical applications that require a very good combination of chemical, mechanical, and thermal resistance.



General purpose glass formulation

General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.



BNC connector

Allows for quick and easy connection to any pH/ORP meter or transmitter.



Double junction technology with gel polymer filling

Ensure long electrode life and reliability in harsh environments.



PTFE junction

The electrode has a unique clog resistant junction that enhances both probe life and accuracy.



Specifications



Body Material

PEI

Junction/Flow rate

Double, cloth

Electrolyte

Gel

Max. pressure

3 bar (43.5 psi)

Glass Type

(-15 to 80°C/ 5 to 176°F)

Body Length / Overall Length

140mm

Temperature sensor

No

Amplifier

No

Connection

T-Type
