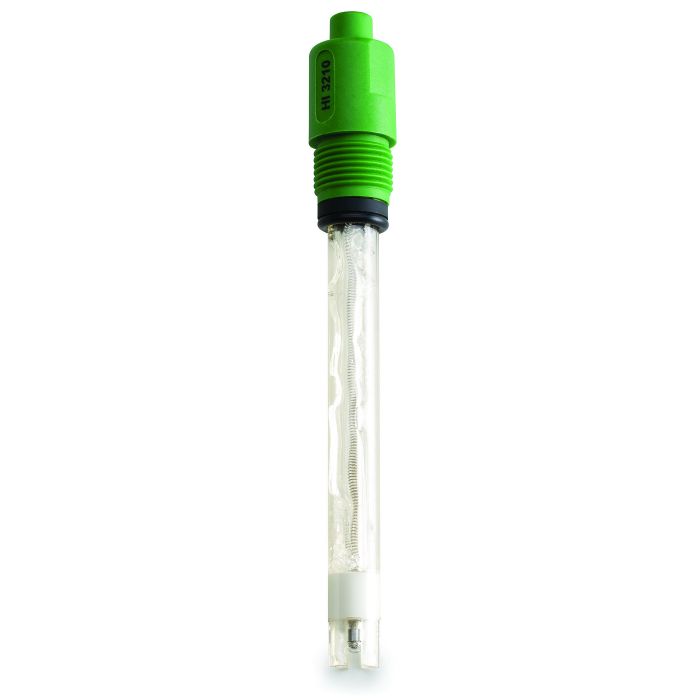

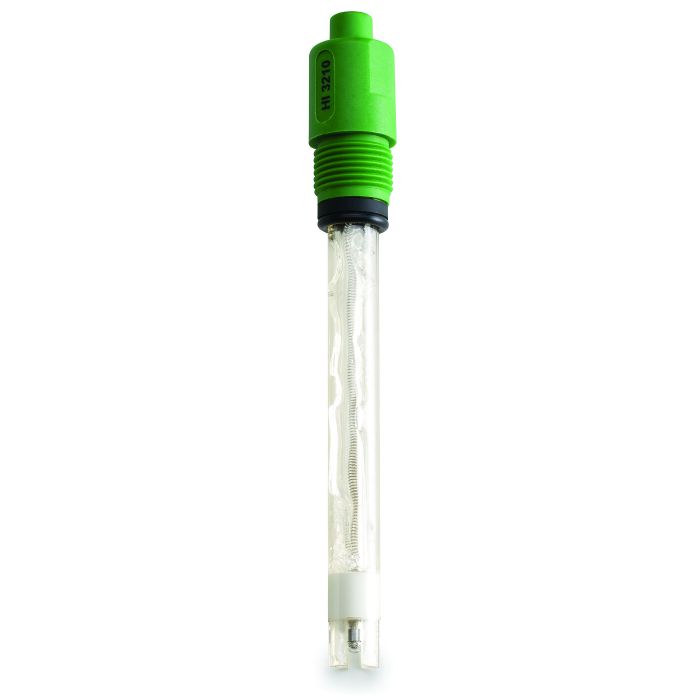

Combination ORP electrode (PEI body, 5m cable) - HI3210B/5

In stock
This combination  ORP electrode (PEI-body) is designed for industrial applications with features such as platinum sensor, a cloth junction, and T-type connection. With it's durable design, you can count on this electrode to stand up to your process environment.
  • Combination PEI-body ORP electrode.
  • Screw cap connector and PG 13.5 thread .
  • Built for everyday, demanding use in industrial applications

Combination electrode

Single combined electrode that has both sensing and reference components for added convenience.


PEI body

PEI bodied electrodes are rugged and suitable for noncritical applications that require a very good combination of chemical, mechanical, and thermal resistance.


PTFE junction

The electrode has a unique clog resistant junction that enhances both probe life and accuracy.


BNC connector

Allows for quick and easy connection to any pH/ORP meter or transmitter.


Platinum sensor

Provides the best response over a wide range of applications.


Flexible instalaltion

All Hanna pH and ORP electrodes can be mounted with the Hanna inline and submersion assemblies.




Specification Name Detail
SKU HI3210B/5
Tip Shape Platinum
Body PEI
Junction Double, PTFE
Glass Type (0 to 80°C/ 32 to 176°F)
Electrolyte Polymer
Matching Pin No
Amplifier No
Temperature Sensor No
Max Pressure 3 bar (43.5 psi)
Connector BNC
Cable 5m
Length 148.5mm
Warranty 6 months
