SKU
HI3190T

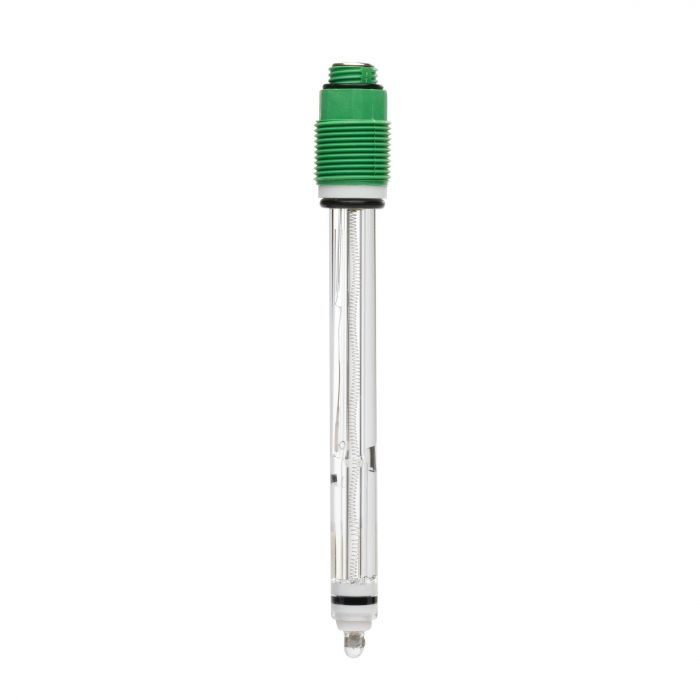

Combination Glass-body ORP Electrode - Platinum Sensor, T-type Connector - HI3190T

€247.20
In stock
This combination glass-body ORP electrode is designed for industrial applications with features such as platinum sensor, a PTFE junction, and T-type connection. With it's durable design, you can count on this electrode to stand up to your process environment.
  • Combination glass-body ORP electrode.
  • Screw cap connector and PG 13.5 thread .
  • Built for everyday, demanding use in industrial applications

Combination electrode

Single combined electrode that has both sensing and reference components for added convenience.

Platinum sensor

Provides the best response over a wide range of applications.

PTFE junction

The electrode has a unique clog resistant junction that enhances both probe life and accuracy.

Glass body

Glass body electrodes are easier to clean, can withstand high pressure and high temperature applications, and offers high resistance to aggressive chemicals.

T-type connector

Designed by Hanna to take advantage of both PG 13.5 thread and screw cap. The PG 13.5 thread ensures proper in-line installation while the screw cap allows for maximum versatility making it possible to connect a cable of different lengths.

Double junction technology with gel polymer filling

Ensure long electrode life and reliability in harsh environments.



Specifications



Junction Type/Flow Rate

Double, PTFE

Type of Electrolyte

Polymer

Body Material

Glass

Glass Type

-15 to 100°C/ 5 to 212°F

Tip / Shape

Platinum

Matching Pin

No

Max. Pressure

6 bar (87 psi)

Overall Length

140mm

Temperature Sensor

No

Connector Type

T-type

Amplifier

No
