SKU
HI3090T

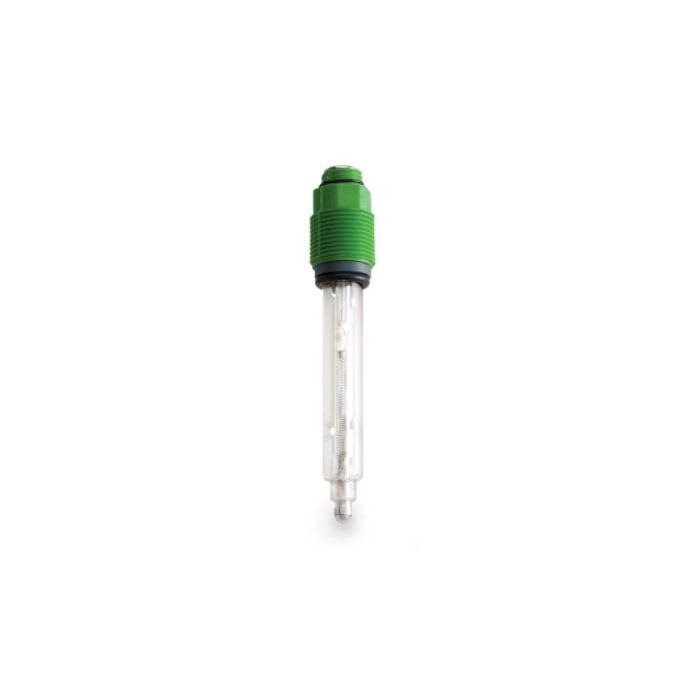

Combination Glass-body ORP Electrode - Platinum Sensor, T-type Connector, 3 Bar - HI3090T

€215.00
In stock
This combination glass-body ORP electrode is designed for industrial applications with features such as platinum sensor, a ground glass junction, and T-type connection. With it's durable design, you can count on this electrode to stand up to your process environment.
  • Combination glass-body ORP electrode.
  • Screw cap connector and PG 13.5 thread.
  • Built for everyday, demanding use in industrial applications.

Combination electrode

Single combined electrode that has both sensing and reference components for added convenience.

Platinum sensor

Provides the best response over a wide range of applications.

PEI body

PEI bodied electrodes are rugged and suitable for noncritical applications that require a very good combination of chemical, mechanical, and thermal resistance.

Glass body

Glass body electrodes are easier to clean, can withstand high pressure and high-temperature applications, and offers high resistance to aggressive chemicals.

T-type connector

Designed by Hanna to take advantage of both PG 13.5 thread and screw cap. The PG 13.5 thread ensures proper in-line installation while the screw cap allows for maximum versatility making it possible to connect a cable of different lengths.

Double junction technology with gel polymer filling

Ensure long electrode life and reliability in harsh environments.

Specifications


SKU HI3090T
Tip Shape Platinum
Body Glass
Junction Double, ground glass
Glass Type (-5 to 95°C/ 23-203°F)
Electrolyte Polymer
Matching Pin No
Amplifier No
Temperature Sensor No
Max Pressure 3 bar (43.5 psi)
Connector T-type
Length 140mm
