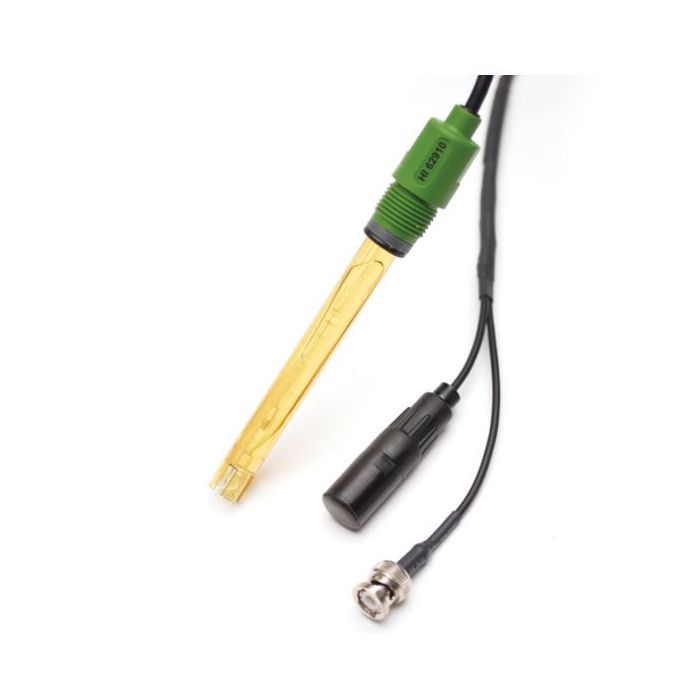

AmpHel® pH Electrode with Replaceable Battery - General Purpose, 5m
This amplified pH electrode is designed for industrial applications with features such as a cloth junction, PEI body and replaceable battery. With it's durable design, you can count on this electrode to stand up to your process environment.
- AmpHel pH electrodes with replaceable battery.
- Ideal for measurements in unclean samples and high humidity conditions.
- Built for everyday, demanding use in industrial applications.
Amplified pH electrode
Provides a stable signal for industrial monitoring as well as a major saving in low noise coaxial cable costs.
PEI body
PEI bodied electrodes are rugged and suitable for noncritical applications that require a very good combination of chemical, mechanical, and thermal resistance.
Cloth junction
Clear the junction by simply extracting 1/8” of the junction from the electrode to expose a new portion, resulting in a renewed junction.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
General purpose glass formulation
General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
AmpHel® replaceable battery
No longer necessary to throw away an electrode when the battery is exhausted for longer electrode life.
Specification
| Specification Name | Detail |
|---|---|
| SKU | HI6291005 |
| Body | PEI |
| Junction | Cloth |
| Glass Type | GP (-5 to 70°C) |
| Electrolyte | Gel |
| Matching Pin | No |
| Amplifier | Yes |
| Temperature Sensor | No |
| Max Pressure | 3 bar (43.5 psi) |
| Connector | BNC |
| Cable | 5m |
| Warranty | 6 months |
