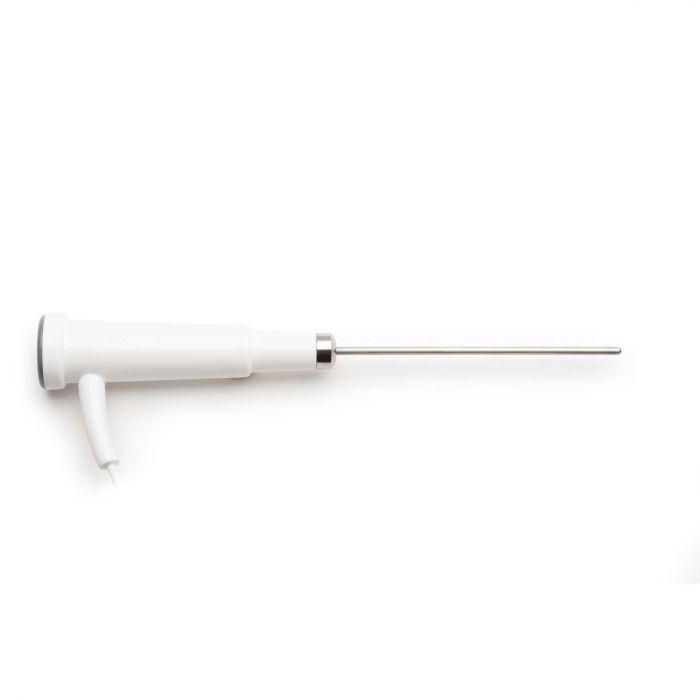

The HI762A is an air and gas thermistor probe with a handle designed for use with a thermistor thermometer. A cable extends 1 m (3.3') from the handle to the meter connection. The vent holes at the tip of the probe allow users to obtain highly accurate temperature readings of air and gases.
The Air and Gas Thermistor Probe with Handle - HI762A is designed to measure the temperature of air and gas samples. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI762A construction with vent holes located at the tip of the probe offers a 6-second response for a temperature reading. With a strong, corrosion-resistant, AISI 316 stainless steel construction, this probe is able to measure samples up to 150°C (302°F).
Specifications
Temperature Reference
NTC sensor
Accuracy
±0.2°C (±0.4°F)
Recommended operating temperature
-50 to 150°C (-58 to 302°F)
Response Time (90% of final value)
5 secs

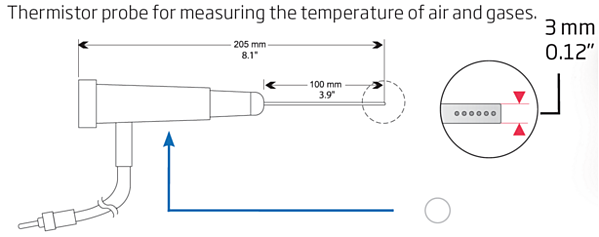

Body Length
L 100 mm x dia 3 mm (3.9" x 0.12")
Body Material
AISI 316 stainless steel
Cable
PVC/straight; 1 m (3.3')
Connection
RCA
Recommended use
air, gases
