Advanced pH/ORP Benchtop Meter - HI6221

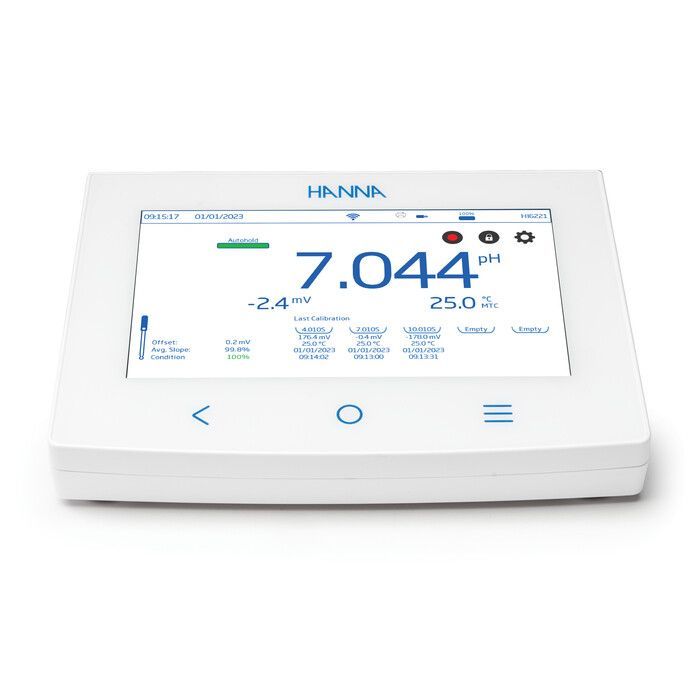

HI6221 is a streamlined benchtop meter with a large touchscreen display, comprised of a housing and an integrated pH / ORP measurement module.
Compact and easy to operate, the benchtop meter is delivered with Hanna Instruments HI1131B double junction combination pH electrode, together with HI7662-TW temperature probe.
This system responds to a complex range of measurement and monitoring requirements, providing accuracy, reproducibility, and reliability.
HI6221 is supplied with an electrode holder that has a flexible arm. The holder can be mounted quickly and provides secure support for electrodes while taking measurements in sample containers.
User interface
- 7-inch capacitive touch screen with multi-touch support
- Capacitive touch back, home, and system menu keys
- User-friendly icons and symbols allow users to easily navigate and interpret the instrument functions.
- The user can select between five different views:
- Basic measurement configuration
- Simple GLP with calibration information
- Full GLP with electrode status and calibration point details
- Live updated, interactive graph
- Tabulated data with date, time, and notes
Measurement
- Measure pH/mV (pH) or mV/Rel.mV (ORP) with temperature
- Application-specific profiles allow quick and direct measurement without the need to update the sensor and system settings
- Active log during the measurement
- Measurement stability indicator (using the Stability Criteria setting)
- Reading modes: direct and direct/ auto-hold
- Temperature compensation can be Automatic (using a temperature probe) or set manually
- Audible and/or alarm messages for measurements outside of predefined limits
- Galvanic isolation for pH/ORP measurement
Calibration
- 5-point pH calibration with automatic recognition for standard buffers (Hanna and NIST buffers)
- Choice of standard or custom buffers for calibration
- Non-volatile memory saves data and settings
Logging
- Data log collection of at least 1,000,000 data points (with time and date stamps)
- Logging types: manual, automatic, auto-hold
- Sample ID for manual and Autohold data
Connectivity features & services
- Transfer logged data to a USB thumb drive
- Log files that include measurements and calibration data (as .csv file)
- FTP and email for log export via Ethernet and Wi-Fi connection
- USB type A for USB stick, keyboard, and printer
- USB type C for USB stick and PC connection
| SKU | HI6221 | |
|---|---|---|
| Product Name | Advanced pH/ORP Benchtop Meter - HI6221 | |
| pH | Range | -2.0 to 20.0 pH,; -2.00 to 20.00 pH; -2.000 to 20.000 pH |
| Resolution | 0.1 pH; 0.01 pH; 0.001 pH | |
| Accuracy | ±0.1 pH; ±0.01 pH; ±0.002 pH (±1 last significant digit) | |
| mV | Range | ±2000.0 mV |
| Resolution | 1 mV; 0.1 mV | |
| Accuracy | ±0.2 mV ±1 last significant digit | |
| Temperature | Range | -20.0 to 120.0 °C; -4.0 to 248.0 °F; 253.0 to 393.0 K |
| Resolution | 0.1 °C / 0.1 °F / 0.1 K | |
| Accuracy | ±0.2 °C / ±0.4 °F / ±0.2 K | |
| Relative mV offset Range | ±2000.0 mV | |
| pH Calibration | Calibration point | Up to 5 |
| Type | Automatic; Semiautomatic; Manual | |
| Standard buffers | "Hanna and NIST pH1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45" | |
| Custom buffers | Up to 5 | |
| Custom group | Up to 5 | |
| 1st Calibration point | Offset or Points (user setting) | |
| Reminder |
"Disabled Daily 0 min. to 23 hours and 59 min. Periodic 1 min. to 500 days, 23 hours, and 59 min." |
|
| Reading | Modes | Direct; Direct/Auto hold |
| Stability criteria | Accurate; Medium; Fast | |
| Isopotential | 7.000 or 4.010 | |
| Sampling rate | 1000 ms | |
| pH Views | Basic | "Measurement (pH, mV, Rel. mV, Abs. mV) Temperature, Stability status" |
| Simple GLP |
Basic view information Last calibration date, electrode offset, average slope, and electrode condition" |
|
| Full GLP | Simple GLP information and Calibration point details | |
| Table | "Measurements updated every second are displayed in the table" | |
| Graph (Plot) | pH (or mV) and temperature versus time graph can be panned or zoomed (pinch-to-zoom technology) | |
| Logging | Type | Automatic, Manual, Auto hold |
| Number of records | "50 000 maximum per file Stores at least 1 000 000 data points per user" | |
| Automatic interval | "1, 2, 5, 10, 30 seconds 1, 2, 5, 10, 15, 30, 60, 120, 150, 180 minutes" | |
| Sample ID | Incremental mode | |
| Export option | .csv file format | |
| Connectivity | USB-A | 2 ports for keyboard input or USB thumb drive |
| USB-C | "1 port for PC Connectivity and USB-C type thumb drive" | |
| Wi-Fi & Ethernet |
FTP Web sever Log transfer and download |
|
| RS232 | Connecting peripherals | |
| Power supply | DC adapter 100-240AC to 24VDC 2.5A | |
| Environment | 0 - 50 °C / 32 - 122 °F / 273 - 323 K maximum 95% RH non-condensing | |
| Dimensions | 205 x 160 x 77 mm (8.0 x 6.2 x 3.0 “) | |
| Weight | Approximately 1.2 kg (26.5 lbs.) |
