SKU
HI10000

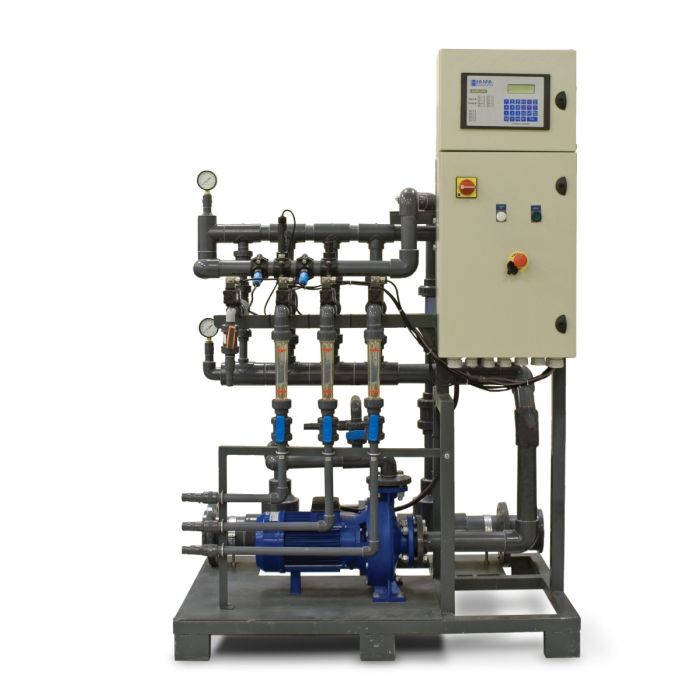

Advanced Fertigation Control System

In stock

The All-in-One Solution. The HI10000 Fertilizer Injection System precisely monitors and controls fertilizer concentrations and pH for specialized hydroponics, greenhouse, and field agricultural applications. The HI10000 is a complete irrigation control system with multiple zone capability.

  • Customize your fertilizer mixtures with the injection and mixing of up to 4 fertilizers and 1 acid with a custom option of up to 7 independent injectors.
  • Superior flexibility with multiple programs that allow the user to set various conductivity and pH values for a variety of plants.
  • Automated irrigation control of up to 32 zones with advanced conductivity and pH control over vast flow rates.

Combined Fertigation and Irrigation Control.

The Hanna Fertigation System continuously measures the actual EC and pH of the flow-through and precisely adjusts the concentration of fertilizer into the system.

Injecting multiple fertilizers to a specific conductivity results in an optimum nutrient application while advanced pH control improves nutrient absorption and plant health.

For peace of mind, the HI10000 is a bypass system which will not interfere with mainline flow and thus does not impede line flow or pressure. No pressure loss generated by the system means less watering time.

The unit will accurately inject fertilizer in varying flow rates ranging from 1 GPM to 350 GPM. Custom configuration is possible when higher flow rates are desired.







Superior System Design.

The HI8000 series controller included with the system has 10 programs that allow the user to set various EC and pH values for a variety of crops.

The system also controls up to 32 irrigation valves, either sequentially or in groups of 2, 3, or 4 at once. Programs can be triggered by time, external switching, or flow.

To keep plants safe, the HI10000 fertigation system features multiple alarms and redundant monitoring of conductivity and pH measurements.


Ideal for Complex or Multiple Fertilizer Mixes.

The HI10000 system allows the injection of 4 (up to 7) independent fertilizers and 1 acid. The acid system can safely inject any acid type and uses a state of the art algorithm that accurately maintains the pH setpoint over a wide range of flow rates.





Specification



pH

pH Range: 0.0 to 14.0 pH
pH Resolution: 0.1 pH
pH Accuracy: ±0.0546 pH
EC/TDS
EC Range: 0.0 to 10.0 mS/cm
EC Resolution: 0.1 mS/cm
EC Accuracy: ±0.078 mS/cm

Electrical Requirements
Controller Power Requirements : 115V/220V; 50Hz/60Hz. 10 Amp, 4 outlet box recommended
Circulator Pump Solenoid Array Power Requirements: 208/240, 3 phase, 30 Amp breaker

Plumbing Requirements
Pressure Requirement (PSI): Maintained at fixed pressure between 50 to 65 PSI
Minimum Flow Rate: 1.0 GPM
Maximum Flow Rate: 350+ GPM (dependent on various factors)
Pipe Type Recommendations: Schedule 40 or 80 PVC
Minimum Pipe Diameter Recommendation : 1.25 inch (1.0 inch for HI10000 (low flow))
Straight Run Requirement: 10 diameters of straight run prior to system connection, 5 diameters after (downstream)
Fertigator In/Out Connection: 2x8 bolt, 4-inch flange fitting with gaskets

System
Typical Inputs: 3 Conductivity Probes, 2 pH Electrodes, 4 Fertilizer Tank Level, 1 pH Tank Level, 5 External Tank Trigger, 1 Mix Tank Level, 2 Differential Pressure, 1 Irrigation Counter for Volume Control, 1 Temporary Break, 1 Conditional Stop
Typical Outputs: 2 non-consent alarms, 32 zone valves, 2 filter flushing, 1 pump, 1 agitator, 4 independent fertilizer injectors, 1 pH injector
Control Type : Advanced Auto Tuning PID
Max. Injector Suction: Large Venturi = 780 l/h; Small Venturi = 280 l/h
Irrigation Capacity: 32 Zones (24 VAC 0.5 Amp Solenoid Valves)
Irrigation Control : Time/Volume Control, 1 to 6 selectable timetables per program
Readout: 20-digit, 4 level LCD with graphic symbols and messages
